144
Contacts rated at 4 Amps / 28 Vdc. Weight 11 g max. Dimensions of case 20.6 x 10.4 x 10.5
Contacts rated at 4 Amps / 28 Vdc. Weight 11 g max. Dimensions of case 20.6 x 10.4 x 10.5 mm max.
Solution areas
Product categories
Brands
-
-
9274
Contacts rated at 15Amps / 28 Vdc and 115/200 Vac, 400Hz. 3Ø. Weight 363 g max. Dimension
Contacts rated at 15Amps / 28 Vdc and 115/200 Vac, 400Hz. 3Ø. Weight 363 g max. Dimensions of case 76.3 x 58.5 x 68.7 mm max.
-
9324
Contacts rated at 25Amps / 28 Vdc; 115 Vac 60 Hz/400 Hz. 1 Ø. 115/200 Vac, 400 Hz, 3 Ø @
Contacts rated at 25Amps / 28 Vdc; 115 Vac 60 Hz/400 Hz. 1 Ø. 115/200 Vac, 400 Hz, 3 Ø @400 Vac 60 Hz DELTA. 300 g max. Dimensions of case 37.3 x 63.5 x 62.2 mm max.
-
9325
Contacts rated at 25Amps / 28 Vdc; 115 Vac, 400 Hz, 1 Ø 115/200 Vac, 400 Hz, 3 Ø, 120/20
Contacts rated at 25Amps / 28 Vdc; 115 Vac, 400 Hz, 1 Ø 115/200 Vac, 400 Hz, 3 Ø, 120/208Vac, 60Hz, 3 Ø. Weight 645 g max. Dimensions of case 94.2 x 76.3 x 81.4 mm max.
-
9330
Contacts rated at 10Amps / 28 Vdc and 115/200 Vac, 400Hz 3Ø. Weight 200 g max. Dimensions
Contacts rated at 10Amps / 28 Vdc and 115/200 Vac, 400Hz 3Ø. Weight 200 g max. Dimensions of case 42.3 x 63.6 x 66.1 mm max.
-
9339
Contacts rated at 25Amps / 28 Vdc; 115 Vac 60 Hz and 400 Hz, 1 Ø; 115/200 Vac, 400 Hz, 3Ã
Contacts rated at 25Amps / 28 Vdc; 115 Vac 60 Hz and 400 Hz, 1 Ø; 115/200 Vac, 400 Hz, 3Ø and 60Hz. Weight 200 g max. Dimensions of case 38.4 x 38.4 x 53 mm max.
-
CS400
Contacts rated at 2 Amps / 28 Vdc. Weight 70 g max. Enclosure Dimensions without hardware
Contacts rated at 2 Amps / 28 Vdc. Weight 70 g max. Enclosure Dimensions without hardware mounting.
-
CS500
Contacts rated at 2 Amps / 28 Vdc. Weight 70 g max. Enclosure Dimensions without Hardware
Contacts rated at 2 Amps / 28 Vdc. Weight 70 g max. Enclosure Dimensions without Hardware mounting 26 x 25,7 x 26 mm max. Hermetically sealed, corrosion protected metal can.
-
CSHM
Voltage supply 18 to 32 Vdc. Current supply to 28Vdc < 40mA. Cold weather supply voltage o
Voltage supply 18 to 32 Vdc. Current supply to 28Vdc < 40mA. Cold weather supply voltage operation (at reduced accuracy): >10 Vdc Maxi primary current: ± 900A Normal current range: ± 800A Differential output for I=0Amps (Between 5 and 9): 0V ± 20mV Sensitivity: 5mV/A
-
CSHP
Supply voltage MIL Std 704 18 to 32 Vdc Cold weather starting conditions (-54°C) > 12V Cu
Supply voltage MIL Std 704 18 to 32 Vdc Cold weather starting conditions (-54°C) > 12V Current in operate conditions (without contactor) < 65mA Power on current (30ms max) < 6A according to contactor External circuit breaker tripping current (According to CB) I < 4A Nominal / Maximum bus bar current 100A / 3 000A
-
CSHPB
Supply voltage 18 to 32 Vdc Current in operating conditions < 65 mA Nominal bus current +4
Supply voltage 18 to 32 Vdc Current in operating conditions < 65 mA Nominal bus current +400 Amps / -20 Amps
-
D
Contacts rated at 1 Amps / 28 Vdc. Weight 4 g max. Dimensions of case 12 ,8 x 10,4 x 6 mm
Contacts rated at 1 Amps / 28 Vdc. Weight 4 g max. Dimensions of case 12 ,8 x 10,4 x 6 mm max.
-
E
Contacts rated at 1 Amps / 28 Vdc. Weight 4 g max. Dimensions of case 12 ,8 x 10,4 x 6 mm
Contacts rated at 1 Amps / 28 Vdc. Weight 4 g max. Dimensions of case 12 ,8 x 10,4 x 6 mm max.
-
EPM109
This LEACH Solid State Power Controller (SSPC) employs the latest micro-controller and Pow
This LEACH Solid State Power Controller (SSPC) employs the latest micro-controller and Power FET technology incorporated into a Printed Circuit Board (PCB). The EPM-109 features non-derated switching for all types of load, while protecting against overload and short circuit. It features an extensive Built-In-Test (BIT) that verifies all critical functions at start-up and during operation….
-
EPM110
This LEACH Solid State Power Controller (SSPC) employs the latest micro-controller and Pow
This LEACH Solid State Power Controller (SSPC) employs the latest micro-controller and Power FET technology incorporated into a surface mount Printed Circuit Board (PCB). The EPM-110 features non-derated switching for all types of load, while protecting against overload and short circuit. It features an extensive Built In Test (BIT) that verifies all critical functions at…
-
EPM111
This LEACH Solid State Power Controller (SSPC) employs the latest micro-controller and Pow
This LEACH Solid State Power Controller (SSPC) employs the latest micro-controller and Power FET technology incorporated into a Printed Circuit Board (PCB). The EMP-111 features non-derated switching for all types of load, while protecting against overload and short circuit. It features Built In Test (BIT) that verifies all critical functions at start-up and during operation….
-
F250
Contacts rated at 2 Amps / 28 Vdc. Weight 11 g max. Dimensions of case 20,6 x 10,4 x 10,5
Contacts rated at 2 Amps / 28 Vdc. Weight 11 g max. Dimensions of case 20,6 x 10,4 x 10,5 mm max.
-
F257
Nominal current 2 Amps. Weight 11 g max. Dimensions of case 20.6 x 10.4 x 10.5 mm max.
Nominal current 2 Amps. Weight 11 g max. Dimensions of case 20.6 x 10.4 x 10.5 mm max.
-
F370
Contacts rated at 1 Amps / 72 Vdc. Weight 40 g max. Dimensions of case 26 x 25.7 x 13.3 mm
Contacts rated at 1 Amps / 72 Vdc. Weight 40 g max. Dimensions of case 26 x 25.7 x 13.3 mm max.
-
F410
Contacts rated at 10 Amps / 28 Vdc. Weight 284 g max. Dimensions of case 39 x 39 x 60 mm m
Contacts rated at 10 Amps / 28 Vdc. Weight 284 g max. Dimensions of case 39 x 39 x 60 mm max.
-
F470
Contacts rated at 1 Amps / 72 Vdc. Weight 80 g max. Dimensions of case 26 x 25.7 x 26 mm m
Contacts rated at 1 Amps / 72 Vdc. Weight 80 g max. Dimensions of case 26 x 25.7 x 26 mm max.
-
F470S1
Contacts rated at 3+1 Amps / 72 Vdc. Weight 80 g max. Dimensions of case 26 x 25.7 x 26 mm
Contacts rated at 3+1 Amps / 72 Vdc. Weight 80 g max. Dimensions of case 26 x 25.7 x 26 mm max.
-
F472
Contacts rated at 1 Amps / 72 Vdc. Weight 80 g max. Dimensions of case 26 x 25.7 x 26 mm m
Contacts rated at 1 Amps / 72 Vdc. Weight 80 g max. Dimensions of case 26 x 25.7 x 26 mm max.
-

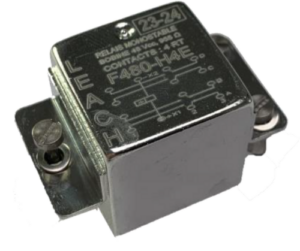

F480
Weight 80 g max Dimensions of case with hardware 44 x 25.7 x 26 mm max Balanced-force desi
Weight 80 g max Dimensions of case with hardware 44 x 25.7 x 26 mm max Balanced-force design Tin plated hermetically sealed metal can No make before break
-

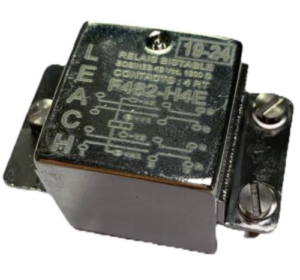

F482
Polarized, latching hermetically sealed relay Contact arrangement 4 PDT Coil supply Direct
Polarized, latching hermetically sealed relay Contact arrangement 4 PDT Coil supply Direct current Qualified or in accordance with
