9274
9274

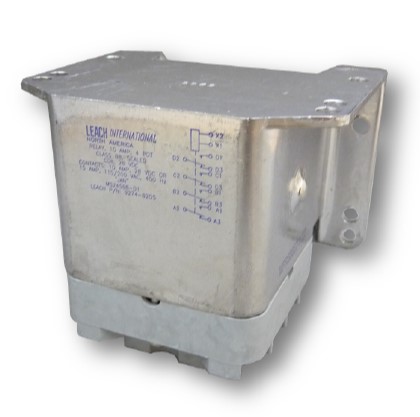

The Leach 9274 is a hermetically sealed, non-latching 15 A four-pole double-throw relay for military power and control circuits.
Up to 15 A resistive at 28 Vdc
Rated for 115 Vac and 115/200 Vac 400 Hz
4PDT contacts, no make before break
28 Vdc or 115 Vac coil options
20 G vibration, 50 G shock, -70 to +125 °C
Metal can, 45.7 x 52.3 x 52.3 mm, 363 g
Qualified to and per MIL-PRF-6106
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Coil Voltage | 115 VAC, 28 VDC |
|---|---|
| Max current | 15 A AC, 15 A DC |
| Sector | Defence |
| Contact config | 4PDT |
| Approvals | MIL-STD |
| Temperature range | -70°C ~ 125°C |
| IP Classification | Hermetic |
| Dimensions | 45,7 x 52,3 x 52,3 mm |
| Vibration | 20 G |
| Shock | 50 G |
| Response time | 25 ms |
