CS500
CS500

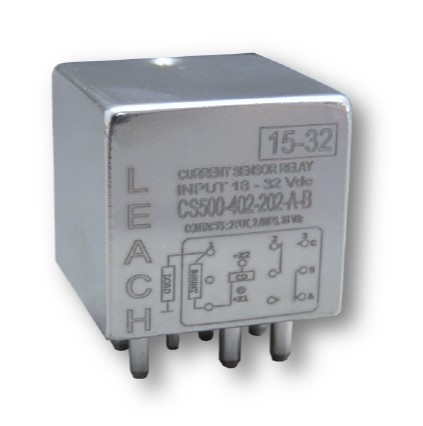

The Leach CS500 is an electronic current sensing relay for currents up to 25 A, with 2PDT output contacts in a hermetically sealed can.
Senses load currents up to 25 A max
Pickup and dropout current chosen by part number
Detection accuracy of ±5%
2 PDT output contacts, 2 A at 28 Vdc
Supply 28 Vdc, range 18 to 32 Vdc
-40°C to +85°C, 15 G vibration, 50 G shock
Hermetic metal can, 70 g, fits S500 socket
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Coil Voltage | 28 VDC |
|---|---|
| Function | Current sensor |
| Max current | 0,3 A AC, 2 A DC |
| Sector | Defence |
| Contact config | DPDT |
| Temperature range | -40°C ~ 85°C |
| Supply voltage | 18–32 VDC |
| IP Classification | Hermetic |
| Mounting | PCB |
| Dimensions | 26 x 25,7 x 26 mm |
| Weight | 70 g |
| Vibration | 15 G |
| Shock | 50 G |
| Response time | 5 ms |
| Accuracy | ±5% |
