CSHP
CSHP

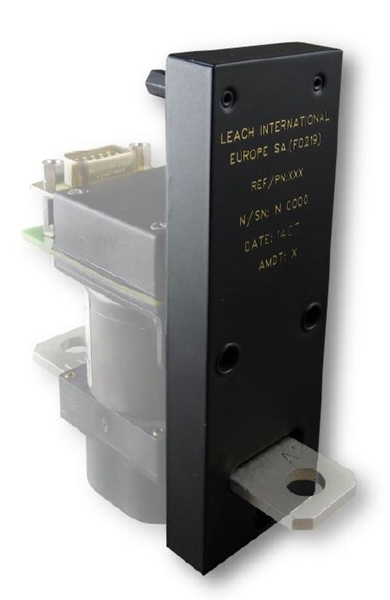

The Leach CSHP is a Hall effect current sensor that turns a bus bar contactor into a remote controlled circuit breaker.
Standard nominal ratings 50, 100, 200 and 300 A
I2t trip law, faster above 10 times nominal
No voltage drop in the protected line
Supply 18 to 32 Vdc per MIL-STD-704
Cold start above 12 V at -54°C
-54°C to +71°C, 95 g weight
500 Vdc dielectric strength, 100 MΩ insulation
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Coil Voltage | 18 VDC, 24 VDC, 28 VDC |
|---|---|
| Function | Current sensor |
| Sector | Defence |
| Temperature range | -54°C ~ 71°C |
| Supply voltage | 18–32 VDC |
| Approvals | DO-160, MIL-STD-704 |
| Mounting | Busbar |
| Weight | 95 g |
| Vibration | 10 G |
| Shock | 30 G |
