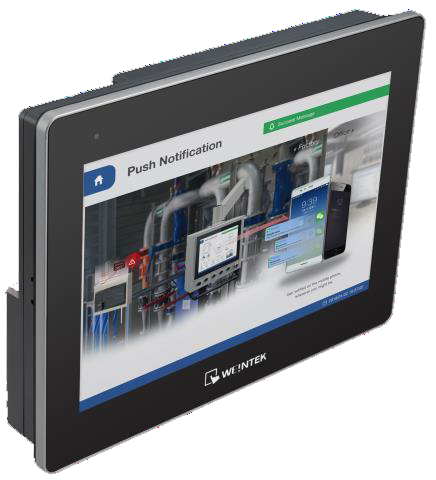

cMT3108XP HMI with 10.1″ WVA Display
cMT3108XP HMI with 10.1″ WVA Display
10.1″ 1280 x 800 Wide Viewing Angle LCD, LED Backlight
Built- in 4GB Flash Memory and RTC
COM2 and COM3 RS-485 2W support MPI 187.5K, please use one at a time.
CAN Bus Supports CANopen, CAN Bus 2.0A/2.0B and SAE J1939
Fan-less Cooling System
PCB coating process ensures high reliability to resist from corrosion in harsh environment.
Built-in Power Isolation
NEMA4 / IP66 Compliant Front Panel
Compatible with M02 WiFi Expansion Module that supports wireless communication.
Our guides help you choose the right product.
HMI and operator panels – how to chooseAdditional information
| IP Classification | IP66 front |
|---|---|
| Programming software | Codesys, Easybuilder Pro |
| Remote access | Yes |
| Screen size | 10'' |
| Mounting | Panel, VESA, Wallmount |
| Temperature range | 0°C ~ 55°C |
| Sector | Factory Automation |
| Material | Plastic |
| Supply voltage | 24 VDC |
| Dimensions | 266 x 196 x 42,7 mm |
| Weight | 1,1 kg |
| Display resolution | 1280×800 |
| Brightness (nits) | 425 nits |
| Touch | Capacitive |
| LAN ports | 2 |
| USB ports | 1 |
| COM ports | 3 |
| Serial standard | RS-232, RS-485 |
| Cooling | Fanless |
| Vibration | 2 G |
| Fieldbus/Interface | CAN, CANopen, Ethernet, J1939, RS-232, RS-485, USB |
| CAN interfaces | 1 |
| Memory | 1GB |
