cMT2078X HMI with 7″ TFT Display
cMT2078X HMI with 7″ TFT Display

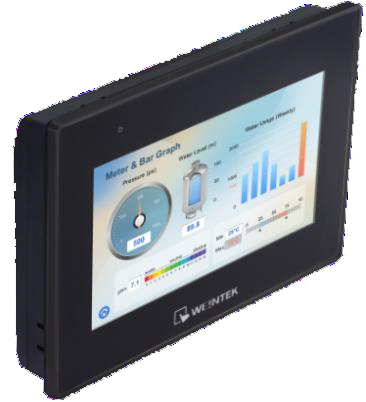

The Weintek cMT2078X is a 7-inch HMI for machine builders who need a compact, reliable operator panel in factory automation.
7-inch 800×480 TFT display with LED backlight, 400 nits
Quad-core Cortex-A35 CPU with dedicated 3D processor
Fanless design with built-in power isolator
IP66 front for panel mounting, 0 to 55 °C
Two Ethernet ports, three COM ports and USB
Programmed in EasyBuilder Pro or CODESYS, with remote access
UL approved
Our guides help you choose the right product.
HMI and operator panels – how to chooseAdditional information
| IP Classification | IP66 front |
|---|---|
| Programming software | Codesys, Easybuilder Pro |
| Remote access | Yes |
| Screen size | 7'' |
| Mounting | Panel |
| Temperature range | 0°C ~ 55°C |
| Sector | Factory Automation |
| Material | Plastic |
| Supply voltage | 24 VDC |
| Dimensions | 200,3 x 146,3 x 35 mm |
| Weight | 0,6 kg |
| Display resolution | 800×480 |
| Brightness (nits) | 400 nits |
| Touch | Resistive |
| LAN ports | 2 |
| USB ports | 1 |
| COM ports | 3 |
| Serial standard | RS-232, RS-485 |
| Cooling | Fanless |
| Vibration | 2 G |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| Processor | ARM Cortex-A35 |
| Approvals | UL |
| Memory | 1GB |
