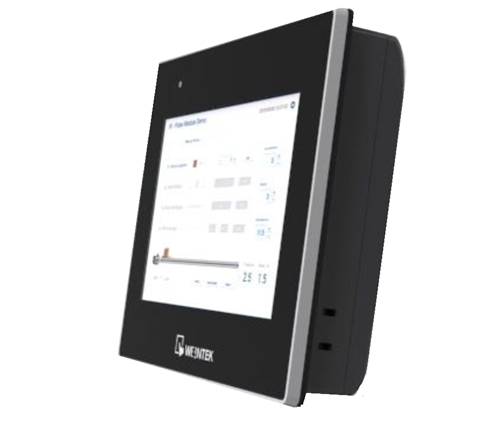

cMT3072XH2 7″ WVA Display
cMT3072XH2 7″ WVA Display
7″ 1024 x 600 IPS LCD, LED Backlight
Quad-core CPU with High Performance with dedicated 3D Processor
Fanless Cooling System
Built- in 4GB Flash Memory and RTC
COM2 and COM3 RS-485 2W supports MPI 187.5K, please use one at a time
CAN Bus Supports CANopen, CAN Bus 2.0A/2.0B and SAE J1939
Built-in Power Isolator
NEMA4 / IP66 Compliant Front Panel
Our guides help you choose the right product.
HMI and operator panels – how to chooseAdditional information
| IP Classification | IP66 front |
|---|---|
| Programming software | Codesys, Easybuilder Pro |
| Remote access | Yes |
| Screen size | 7'' |
| Mounting | Panel |
| Temperature range | 0°C ~ 55°C |
| Sector | Factory Automation |
| Material | Plastic |
| Supply voltage | 24 VDC |
| Dimensions | 200,3 x 146,3 x 35 mm |
| Weight | 0,6 kg |
| Display resolution | 1024×600 |
| Brightness (nits) | 450 nits |
| Touch | Resistive |
| LAN ports | 2 |
| USB ports | 1 |
| COM ports | 3 |
| Serial standard | RS-232, RS-485 |
| Cooling | Fanless |
| Vibration | 2 G |
| Fieldbus/Interface | CAN, CANopen, Ethernet, J1939, RS-232, RS-485, USB |
| CAN interfaces | 1 |
| Approvals | UL |
| Memory | 1GB |
