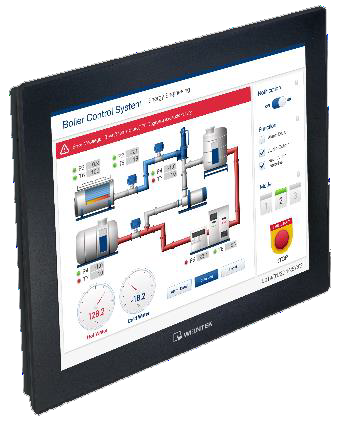

cMT2158X HMI with 15″ WVA Display
cMT2158X HMI with 15″ WVA Display
The Weintek cMT2158X is a 15-inch HMI in an aluminium housing for production lines that need a large, robust operator screen.
15-inch 1024×768 wide-angle LCD, 350 nits
Quad-core Cortex-A17 CPU with dedicated 3D processor
Fanless design with built-in power isolator
IP66 front with panel, VESA or wall mounting
Two Ethernet ports, USB, RS-232 and RS-485
SD card slot for SD/SDHC cards
EasyBuilder Pro or CODESYS, UL approved
Our guides help you choose the right product.
HMI and operator panels – how to chooseAdditional information
| IP Classification | IP66 front |
|---|---|
| Programming software | Codesys, Easybuilder Pro |
| Remote access | Yes |
| Screen size | 15'' |
| Mounting | Panel, VESA, Wallmount |
| Temperature range | 0°C ~ 55°C |
| Sector | Factory Automation |
| Material | Aluminium |
| Supply voltage | 24 VDC |
| Dimensions | 366 x 293 x 48,2 mm |
| Weight | 2,74 kg |
| Display resolution | 1024×768 |
| Brightness (nits) | 350 nits |
| Touch | Resistive |
| LAN ports | 2 |
| USB ports | 1 |
| COM ports | 3 |
| Serial standard | RS-232, RS-485 |
| Cooling | Fanless |
| Vibration | 2 G |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| Processor | ARM Cortex-A17 |
| Approvals | UL |
| Memory | 1GB |
