Applications Samples H
Applications Samples H

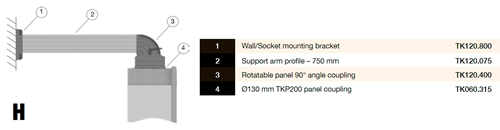

Application example H shows a Teknokol TK120 support arm configuration on a wall/socket bracket, with a horizontal arm and a 90° panel coupling, with the part numbers used.
Wall/socket mounting bracket TK120.800
Support arm profile 750 mm TK120.075
Rotatable panel 90° angle coupling TK120.400
Ø130 mm TKP2000 panel coupling TK060.315
Colours RAL 7035 and RAL 7016
Built from modular Teknokol support arm parts
Additional information
| Sector | Factory Automation |
|---|
