Applications Samples E
Applications Samples E

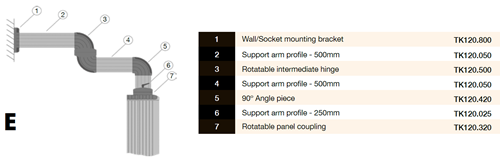

Application example E shows a Teknokol TK120 support arm configuration on a wall/socket bracket, with a two-section arm and the panel hanging below, with the part numbers used.
Wall/socket mounting bracket TK120.800
2 × support arm profile 500 mm TK120.050
Rotatable intermediate hinge TK120.500
90° angle piece TK120.420
Support arm profile 250 mm TK120.025
Rotatable panel coupling TK120.320
Colours RAL 7035 and RAL 7016
Additional information
| Sector | Factory Automation |
|---|
