Applications Samples G
Applications Samples G

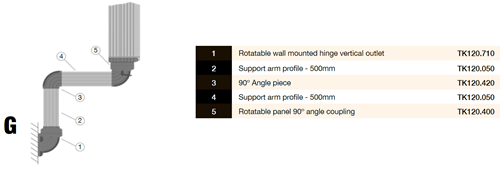

Application example G shows a Teknokol TK120 support arm configuration with a wall-mounted vertical outlet and the panel above the arm, with the part numbers used.
Rotatable wall-mounted hinge, vertical outlet TK120.710
2 × support arm profile 500 mm TK120.050
90° angle piece TK120.420
Rotatable panel 90° angle coupling TK120.400
Colours RAL 7035 and RAL 7016
Built from modular Teknokol support arm parts
Additional information
| Sector | Factory Automation |
|---|
