Applications Samples B
Applications Samples B

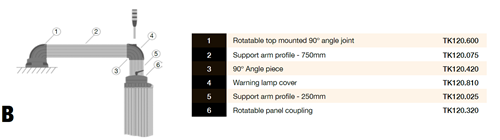

Application example B shows a Teknokol TK120 support arm configuration mounted on a horizontal surface, with a horizontal arm and hanging panel, with the part numbers used.
Rotatable top-mounted 90° angle joint TK120.600
Support arm profile 750 mm TK120.075
90° angle piece TK120.420
Warning lamp cover TK120.810
Support arm profile 250 mm TK120.025
Rotatable panel coupling TK120.320
Additional information
| Sector | Factory Automation |
|---|
