Applications Samples D
Applications Samples D

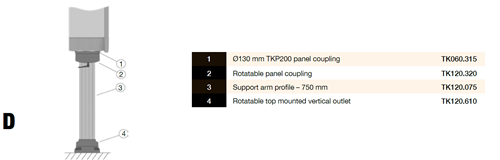

Application example D shows a Teknokol TK120 support arm configuration with a vertical arm rising from a top-mounted outlet to the panel, with the part numbers used.
Ø130 mm TKP2000 panel coupling TK060.315
Rotatable panel coupling TK120.320
Support arm profile 750 mm TK120.075
Rotatable top-mounted vertical outlet TK120.610
Colours RAL 7035 and RAL 7016
Built from modular Teknokol support arm parts
Additional information
| Sector | Factory Automation |
|---|
