JETBOX-STEVIE is a compact Nvidia Jetson AI computing platform ready to deploy. It includes the high performance Jetson AGX Xavier embedded computing module installed on our STEVIE carrier board with a Linux OS installed and preconfigured to support all the I/O on Stevie. Jetbox-Stevie offers the highest performance Jetson computing platform in the smallest available size.

Jetbox-Stevie features multiple expansion sockets for additional I/O and storage capacity to meet a wide range of application needs. Dual SMA antenna cutouts support the installation of WiFi and cellular modem modules for network connectivity. The enclosure is DIN rail mountable or can be used in a ”table top” scenario.

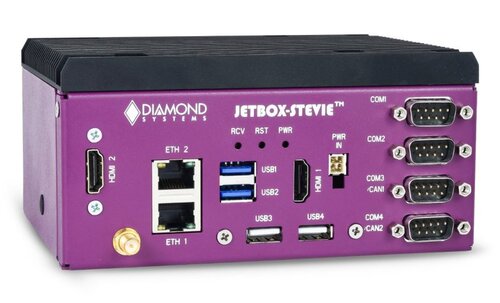

The front panel includes 4 DB9 connectors which provide access to the 4 multi-protocol serial ports on Stevie. Two ports can be converted to CAN by replacing one of the cables with the accessory CAN cable included with the system.

A 12VDC universal AC adapter with US plug is included with the system.
