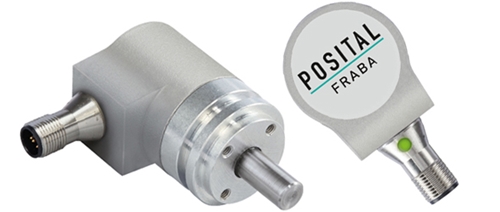

UCD-CA01B-1216-D10D-PRV Absolute encoder
UCD-CA01B-1216-D10D-PRV Absolute encoder
Motion control applications for mobile machines require precise, real-time information about the physical location of mechanical equipment. Absolute rotary encoders can provide precise and unambiguous measurements without losing track of their position due to a temporary loss of instrument power.
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KAbsolute vs incremental encoder – how to chooseAdditional information
| IP Classification | IP68, IP69K |
|---|---|
| Accuracy | ±0.0878° |
| Measuring technology | Magnetic |
| Material | Aluminium, Stainless steel, Steel |
| Resolution multiturn | 12bits |
| Resolution Singleturn | 16bits |
| Flange size | 36mm |
| Electrical connection | M12 connector radial |
| Supply voltage | 9–30 VDC |
| Shaft diameter | 10mm |
| Sector | Factory Automation, Vehicle Solutions |
| Fieldbus/Interface | CAN, CANopen |
| Communication Interface | CANopen |
| Power consumption | 1,2 W |
| Measured variable | Position |
| Temperature range | -40°C ~ 85°C |
| Max operating speed | 6000 rpm |
| Shock | 200 G |
| Vibration | 30 G |
| Weight | 245 g |
| Approvals | E-mark (ECE R10), UL |
