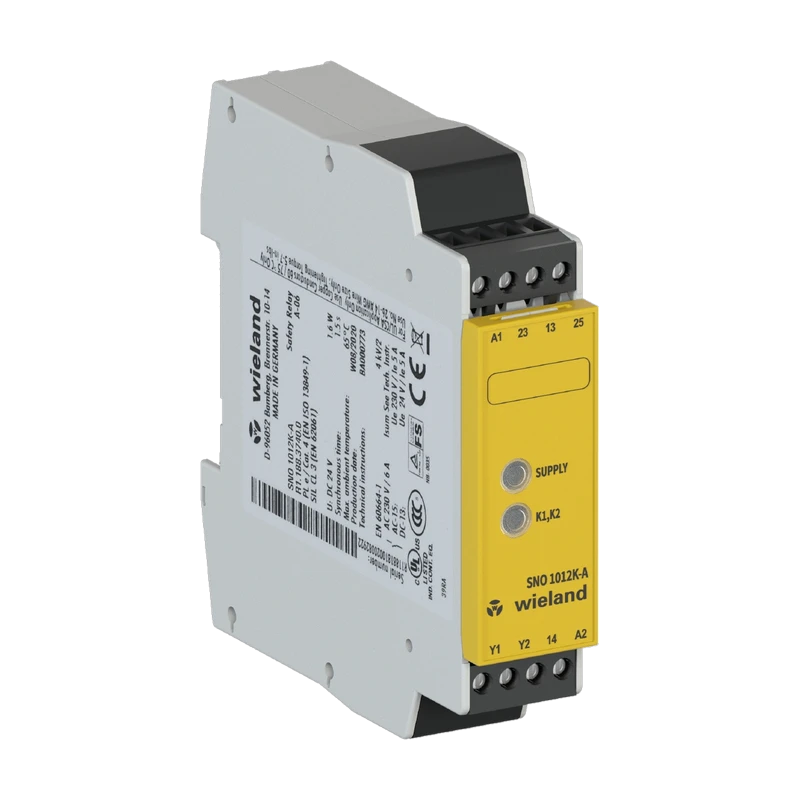

SNO 1012K Safety Relay
SNO 1012K Safety Relay
Compact single-channel safety relay for emergency stop and guard monitoring on simple machines, with two safe enabling contacts.
Single-channel control of the safety circuit
2 safe NO enabling contacts, up to 6 A
Up to PL d, category 3 and SILCL 2
AC/DC 24 V supply, 22.5 mm housing
Pluggable screw or push-in terminals
Operating temperature -25 to 55 °C
Additional information
| Sector | Factory Automation |
|---|---|
| Temperature range | -25°C ~ 55°C |
| IP Classification | IP20, IP40 |
| Supply voltage | 24 VAC, 24 VDC |
| Mounting | DIN rail |
| Mechanical cycles | 10.000.000 |
| Dimensions | 22,5 x 96,5 x 91,5 mm |
| Weight | 120 g |
| Power consumption | 1 W |
| Response time | 20 ms |
| Contact config | Normally open (NO) |
