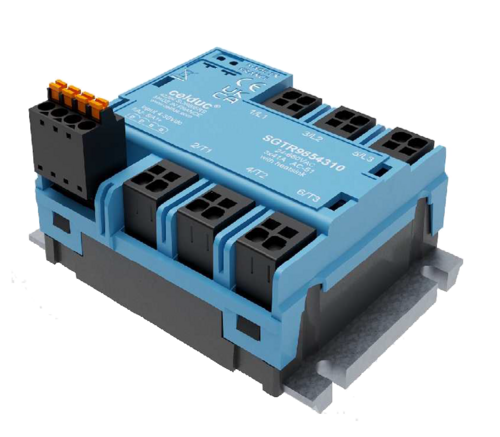

SGTR9854310 Three-phase Power Solid State Relay 3x41A with “push-in” terminals
SGTR9854310 Three-phase Power Solid State Relay 3x41A with “push-in” terminals
The Celduc SGTR9854310 is a three-phase solid state relay with push-in terminals for AC-1 resistive loads such as industrial heaters.
3 × 41 A at 24–660 VAC, zero-cross switching
60 A thyristors, current limited to 41 A by terminals
Transil input and TVS output overvoltage protection
IP20, double push-in power terminals up to 6 mm²
Pluggable 4-pole push-in control terminal, 4–30 VDC, green LED
Designed to IEC/EN 60947-4-3, 60947-4-2 and IEC 62314
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Control voltage | 4–30 VDC |
|---|---|
| Max current | 41 A AC |
| Max system voltage | 24–660 VAC |
| Phase | 3-phase |
| Electrical connection | Push-In quick connect |
| Sector | Factory Automation |
| IP Classification | IP20 |
| Temperature range | -40°C ~ 100°C |
| Weight | 200 g |
| Material | Aluminium, Plastic |
| Shock | 50 G |
| Response time | 10 ms |
