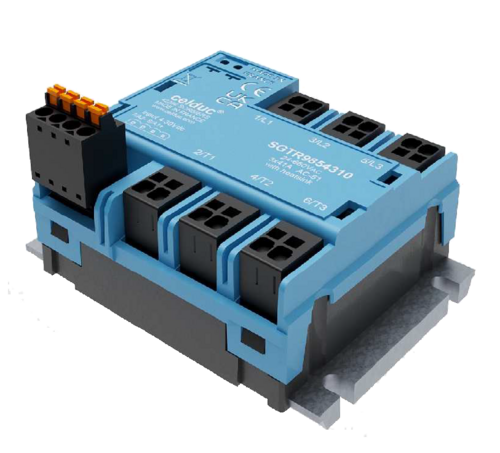

SGTR869510 Three-phase Power Solid State Relay 3x32A with “push-in” terminals
SGTR869510 Three-phase Power Solid State Relay 3x32A with “push-in” terminals
Three-phase Zero Cross Solid State Relay specially designed for most types of loads (AC-1 and AC-3).
Over-Voltage protection at the input (transil) and output (RC + VDR).
Back to back thyristors on output with TMS² technology for a long lifetime expectancy : 24 to 520VAC 3x125A. Current limited by the connectors at 41A.
Direct copper bonding (DCB) technology.
Large control range: 4-30VDC with input current limiter.
Green LED visualization on the input.
Double “push-in” spring power terminals (max. 6mm²).
4 poles “push-in” pluggable spring control terminals (max. 2.5mm²).
Designed in conformity with IEC/ EN60947-4-3 and IEC/EN60947-4-2 ; IEC 62314.
Built in IP20.
Additional information
| Control voltage | 4-30VDC |
|---|---|
| Current | 30A |
| Max current | 125A |
| Max system voltage | 24-520VAC |
| Phase | 3-phase |
| Electrical connection | Push-In quick connect |
| Sector | Factory Automation |
