SGT9694300 Solid State Relay 125A
SGT9694300 Solid State Relay 125A

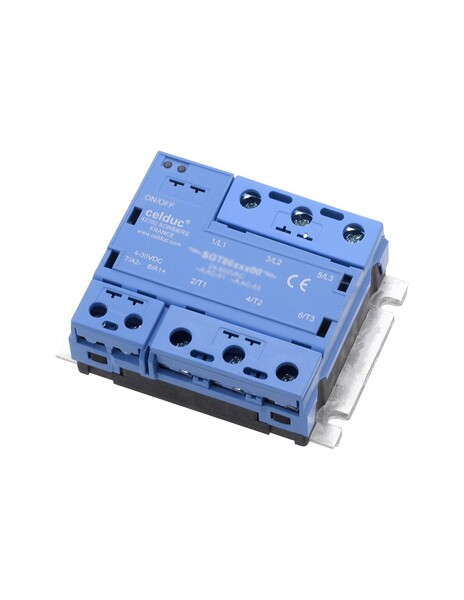

The Celduc SGT9694300 is a high-power three-phase solid state relay for resistive heating loads in industrial process equipment.
64 A AC-51 per phase, 125 A thyristors
24–600 VAC zero-cross output, 1200 V peak voltage
High surge capability, I²t of 22000 A²s
TVS overvoltage protection on input and output
IP20 housing with protective flaps
4–30 VDC control with current limiter and green LED
Designed to IEC/EN 60947-4-3
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Control voltage | 4–30 VDC |
|---|---|
| Max current | 125 A AC |
| Max system voltage | 24–600 VAC |
| Phase | 3-phase |
| Sector | Factory Automation |
| IP Classification | IP20 |
| Temperature range | -40°C ~ 100°C |
| Weight | 200 g |
| Material | Aluminium, Plastic |
| Shock | 50 G |
