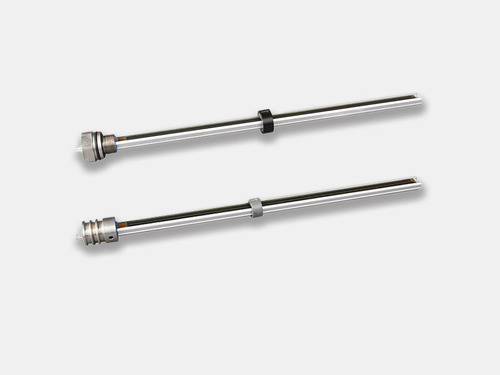

RHTF / RHTP Hydraulic In-Cylinder Linear Potentiometer
RHTF / RHTP Hydraulic In-Cylinder Linear Potentiometer
The Opkon RHTF / RHTP linear potentiometer is mounted inside hydraulic cylinders to measure stroke from 100 to 1000 mm on mobile machines.
Single or double sensor for redundancy
Accuracy ±0.05% to ±0.2%
20 million cycles mechanical life
Aluminium and stainless steel 303
Analogue 0–10 V or 4–20 mA output
Cable connection, 24 VDC, -20 to +80 °C
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KAdditional information
| Stroke length | 100-1000mm |
|---|---|
| Measuring technology | Potentiometer |
| Material | Aluminium, Stainless steel 303 |
| Communication Interface | Analog, Analog 0-10V, Analog 4-20mA |
| Mounting | Rod |
| Electrical connection | cable |
| Supply voltage | 24 VDC |
| Sector | Factory Automation |
| Temperature range | -20°C ~ 80°C |
| Measuring range | 100-1000mm |
| Accuracy | ±0,05%, ±0,2% |
| Mechanical cycles | 20.000.000 |
| Measured variable | Position |
