RPW F32 Rotary Potentiometer
RPW F32 Rotary Potentiometer

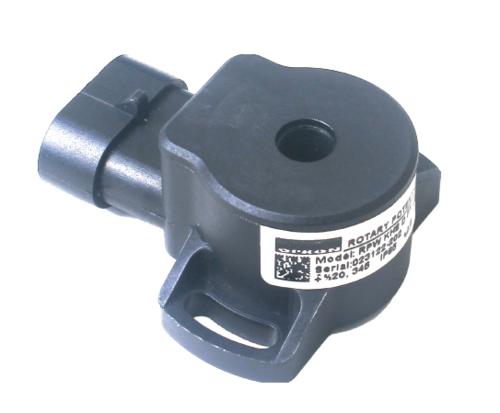

The Opkon RPW F32 rotary potentiometer is a flange-mounted 345° angle sensor with Deutsch connector for robust plug-in installation on machines.
345° ± 2° measuring angle
Independent linearity ±0.5%
50 million cycles mechanical life
Double bearings, 8 mm shaft
2, 5 or 10 kΩ, plastic housing
Deutsch DT04-3P connector, IP54, 12 or 24 VDC
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KAdditional information
| IP Classification | IP54 |
|---|---|
| Measuring technology | Potentiometer |
| Material | Plastic |
| Mounting | Flange |
| Electrical connection | Deutsch DT04-3P |
| Supply voltage | 12 VDC, 24 VDC |
| Sector | Factory Automation |
| Temperature range | -20°C ~ 80°C |
| Measuring range | 0-345° |
| Accuracy | ±0,5% |
| Mechanical cycles | 50.000.000 |
| Shaft diameter | 8mm |
| Measured variable | Position |
