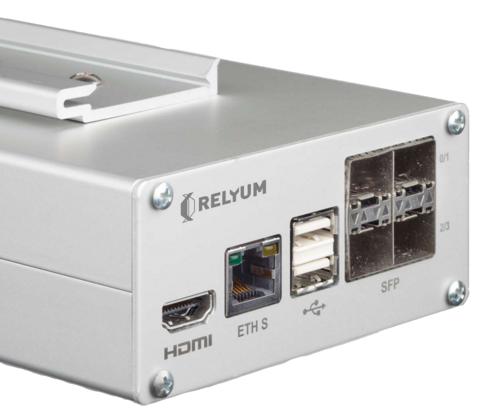

RELY-TSN-LAB – TSN Testing Tool
RELY-TSN-LAB – TSN Testing Tool
RELY-TSN-LAB is a TSN testing tool with IEEE 802.1AS sub-microsecond synchronization for analyzing network segments under stress conditions.
Forces FCS (CRC) errors in selected frames to simulate surges
Measures bandwidth and latency of a device or segment
Hardware timestamps synchronized via IEEE 802.1AS
Stored timestamps for IEEE 802.1Qbv performance results
Web manager and Linux OS for filters and customization
Xilinx Zynq, 1GB memory, 4 Gigabit ports, 2 USB
Fanless DIN rail unit, 6–36 VDC, -40 °C to +70 °C
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial Ethernet protocols – PROFINET, EtherNet/IP, ModbusManaged vs unmanaged switch – and when you need TSNAdditional information
| IP Classification | Unrated |
|---|---|
| Number of ports | 4 |
| Type of switch | Gigabit |
| Mounting | DIN rail |
| Sector | Defence |
| Processor | Xilinx Zynq |
| Operating system | Linux |
| Cooling | Fanless |
| Supply voltage | 6–36 VDC |
| Temperature range | -40°C ~ 70°C |
| Fieldbus/Interface | Ethernet, USB |
| USB ports | 2 |
| Memory | 1GB |
