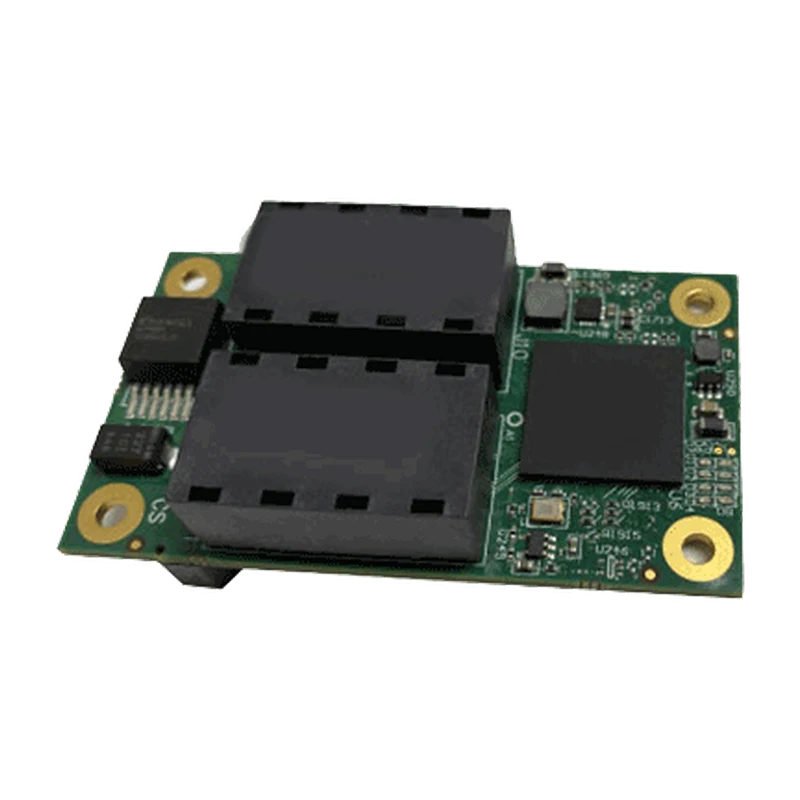

MILTECH 718 8-port Gigabit board level switch
MILTECH 718 8-port Gigabit board level switch
Ultra-compact embedded Gigabit Ethernet switch on board with eight ports for UAV, UGV and robot integration through one board-to-board connector.
8 x 10/100/1000BASE-T ports, 25 Gbps bandwidth
70 x 40 mm footprint, cut-through switching
Cold start from -40°C to +85°C, passive cooling
MIL-STD-461E and 810F/G in suitable chassis
Single Samtec QTE board-to-board power and LAN connector
6–32 VDC or 3,3 VDC versions, 5 W typical
Optional SMI light management, AVB/TSN support, cooling plate
Additional information
| Number of ports | 8 |
|---|---|
| LAN ports | 8 |
| Type of switch | Gigabit |
| Temperature range | -40°C ~ 85°C |
| Supply voltage | 3,3 VDC, 6–32 VDC |
| Approvals | MIL-STD-461, MIL-STD-810 |
| Fieldbus/Interface | Ethernet |
| Dimensions | 70 x 40 x 28 mm |
| Power consumption | 5 W |
| Cooling | Fanless |
| Sector | Defence, Vehicle Solutions |
