Voltage Monitor, E1YM400VS10
Voltage Monitor, E1YM400VS10

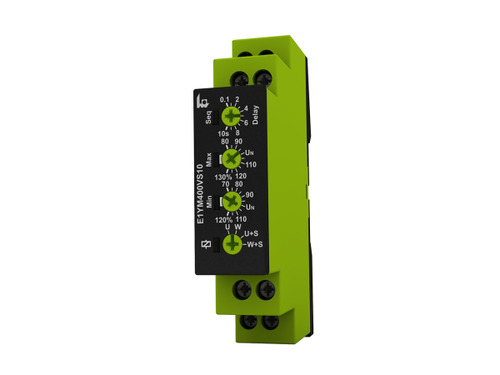

Tele Haase E1YM400VS10 is a multifunction voltage monitoring relay for single-phase and three-phase networks, built for compact distribution boards and control panels.
Upper threshold 80–130 % and lower threshold 70–120 %
Phase failure monitoring, phase sequence monitoring selectable
Tripping delay adjustable from 0.1 to 10 s
Rated voltage 400/230 V AC, 48 to 63 Hz
Measuring voltage equals supply voltage
One changeover contact rated 250 V AC, 5 A
17.5 mm installation housing for DIN rail, IP20/IP40
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| IP Classification | IP20, IP40 |
|---|---|
| Phase | 3-phase, Single phase |
| Temperature range | -25°C ~ 55°C |
| Supply voltage | 230 VAC, 400 VAC |
| Sector | Factory Automation |
| Max current | 5 A AC |
| Mounting | DIN rail |
| Mechanical cycles | 20.000.000 |
| Contact config | Change over (CO) |
| Material | Plastic |
| Power consumption | 1 W |
| Voltage | 250 VAC |
| Dimensions | 17,5 x 87 x 60 mm |
