Current Monitor, E3IM10AL20 230V AC
Current Monitor, E3IM10AL20 230V AC

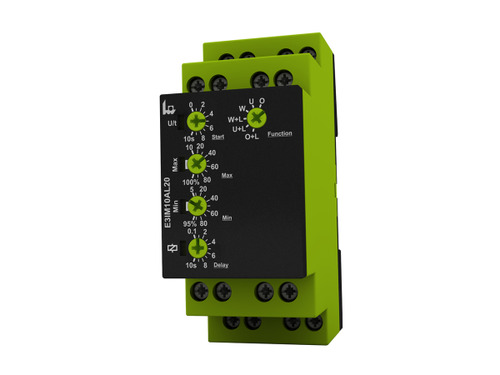

Tele Haase E3IM10AL20 is a single-phase current monitoring relay that protects equipment in industrial and commercial installations by monitoring currents up to 10 A.
Measures single-phase currents up to 10 A
Overcurrent, undercurrent and window monitoring in one unit
Supply voltage 230 V AC
Two changeover contacts for 250 V AC
LED indicators show operating state and faults
35 mm housing for DIN rail mounting, IP20/IP40
Operating temperature from -25 to 55 °C
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Phase | Single phase |
|---|---|
| Temperature range | -25°C ~ 55°C |
| Supply voltage | 230 VAC |
| Sector | Factory Automation |
| IP Classification | IP20, IP40 |
| Max current | 5 A AC |
| Mounting | DIN rail |
| Mechanical cycles | 20.000.000 |
| Contact config | Change over (CO) |
| Rated voltage | 250 VAC |
| Material | Plastic |
| Weight | 140 g |
| Dimensions | 35 x 87 x 60 mm |
| Power consumption | 1,2 W |
