Voltage Monitor, E1YF400V01 0.70
Voltage Monitor, E1YF400V01 0.70

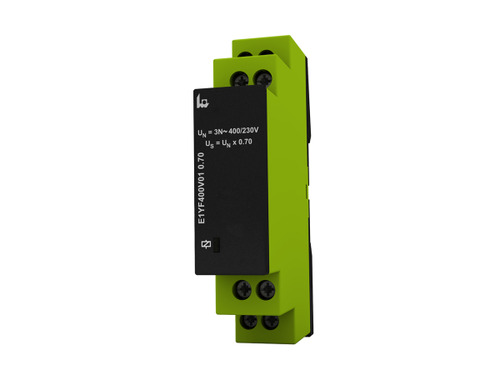

Tele Haase E1YF400V01 0.70 is a voltage monitoring relay protecting 3- and 1-phase installations against undervoltage, with a fixed 70% threshold.
Switches at 161 V L-N, about 5% hysteresis
Approx. 200 ms tripping delay filters transient dips
Measuring range 230/400 V AC, measuring equals supply
One changeover contact rated 250 V AC, 5 A
17.5 mm installation housing for DIN rail
Monitoring to VDE 0108-100 and VDE 0100-718
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Phase | 3-phase, Single phase |
|---|---|
| Temperature range | -25°C ~ 55°C |
| Supply voltage | 230 VAC, 400 VAC |
| Sector | Factory Automation |
| IP Classification | IP20, IP40 |
| Max current | 5 A AC |
| Mounting | DIN rail |
| Mechanical cycles | 20.000.000 |
| Contact config | Change over (CO) |
| Material | Plastic |
| Power consumption | 0,6 W |
| Voltage | 250 VAC |
| Dimensions | 17,5 x 87 x 60 mm |
