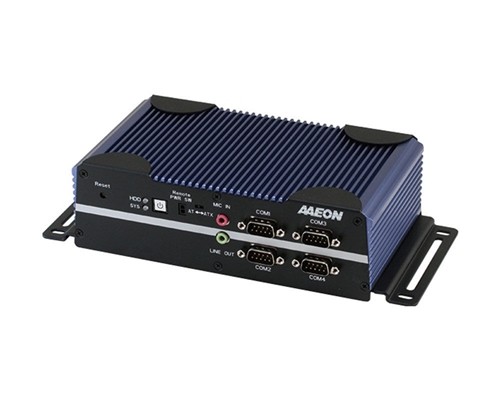

BOXER-6616 Low-power embedded PC
BOXER-6616 Low-power embedded PC
The BOXER-6616 is a low-power fanless box PC with Intel Apollo Lake processors for digital signage, building control and factory automation.
Celeron N3350 or Pentium N4200, max 17 W
Up to 8 GB DDR3L, mSATA and 2.5″ drive storage
Two Intel GbE LAN and four USB 3.2 Gen 1 ports
Six COM ports, HDMI, VGA and 8-bit DIO
External AT/ATX switch and remote power on/off
9–24 VDC input with surge and over-current protection
Operating range -20°C to 70°C, wall, DIN rail or VESA mount
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCEdge computing and AI – how to choose an industrial computerAdditional information
| CPU performance | Low |
|---|---|
| Storage | mSATA, SSD |
| Temperature range | -20°C ~ 70°C |
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
| Processor | Intel Celeron N3350, Intel Pentium N4200 |
| Max memory | 8GB |
| Supply voltage | 9–24 VDC |
| Operating system | Linux, Windows |
| Mounting | DIN rail, VESA, Wall |
| Dimensions | 197 x 55 x 110 mm |
| Weight | 2 kg |
| Vibration | 3 Grms |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| LAN ports | 2 |
| USB ports | 4 |
| COM ports | 6 |
| Serial standard | RS-232, RS-422, RS-485 |
| Display outputs | 2 |
| Cooling | Fanless |
