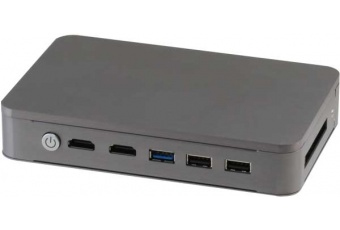

BOXER-6404 One of the smallest, most compact embedded PCs
BOXER-6404 One of the smallest, most compact embedded PCs
The BOXER-6404 is a 30 mm slim fanless box PC with Intel Celeron processors for simple network appliances, gateways and dual-display use.
Intel Celeron J1900 quad-core or N2807 dual-core
Up to 8 GB DDR3L and CFast storage
Four Intel GbE LAN ports
Two HDMI outputs for dual display
RS-232, USB 3.2 Gen 1 and two USB 2.0
12 VDC input, -30°C to 65°C operating range
Aluminium chassis, 166 x 106.6 x 30 mm
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCEdge computing and AI – how to choose an industrial computerAdditional information
| CPU performance | Low |
|---|---|
| Storage | CF |
| Temperature range | -30°C ~ 65°C |
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables, Vehicle Solutions |
| Processor | Intel Celeron J1900, Intel Celeron N2807 |
| Max memory | 8GB |
| Supply voltage | 12 VDC |
| Operating system | Linux, Windows |
| Mounting | DIN rail, VESA |
| Dimensions | 166 x 106,6 x 30 mm |
| Weight | 0,86 kg |
| Vibration | 5 Grms |
| Fieldbus/Interface | Ethernet, RS-232, USB |
| LAN ports | 4 |
| USB ports | 3 |
| COM ports | 1 |
| Serial standard | RS-232 |
| Display outputs | 2 |
| Cooling | Fanless |
| Form factor | CFast |
