DRPC-130-AL Fanless DIN-Rail Embedded System
DRPC-130-AL Fanless DIN-Rail Embedded System

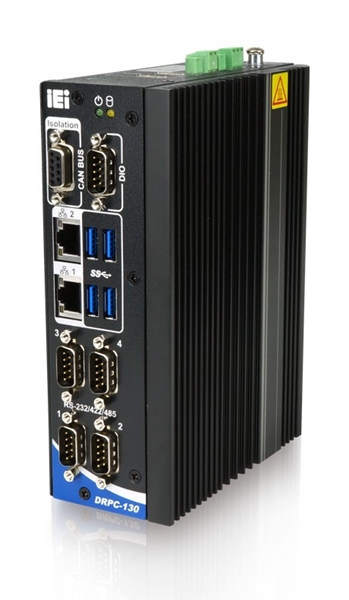

The IEI DRPC-130-AL is a fanless DIN-rail embedded system with Intel Atom x5-E3930 processor for machine control and industrial communication.
Intel Atom x5-E3930, 1.3 GHz, up to 1.8 GHz
DDR3L SO-DIMM memory, up to 8 GB
Two CAN bus interfaces, four DI and four DO
Four COM ports for RS-232/422/485
Two LAN, four USB ports and dual display output
DIN rail or wall mounting, eMMC, mSATA or SSD
12–24 VDC input, -20 to 60 °C, MIL-STD-810
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCEdge computing and AI – how to choose an industrial computerAdditional information
| CPU performance | Low |
|---|---|
| Storage | eMMC, mSATA, SSD |
| Temperature range | -20°C ~ 60°C |
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Renewables |
| Supply voltage | 12–24 VDC |
| Processor | Intel Atom x5-E3930 |
| Max memory | 8GB |
| LAN ports | 2 |
| USB ports | 4 |
| Display outputs | 2 |
| COM ports | 4 |
| Serial standard | RS-232, RS-422, RS-485 |
| Digital inputs | 4 |
| Digital outputs | 4 |
| CAN interfaces | 2 |
| Cooling | Fanless |
| Material | Aluminium |
| Dimensions | 58,75 x 130 x 174 mm |
| Weight | 1,4 kg |
| Shock | 5 G |
| Approvals | MIL-STD-810 |
| Fieldbus/Interface | CAN, Ethernet, RS-232, RS-485, USB |
| Operating system | Linux, Windows |
| Mounting | DIN rail, Wall |
