3.5 inch single board computers are compact boards that combine processor, memory and interfaces on a single board, designed for embedded systems where space is limited. SCN supplies single board computers from IEI and Aaeon, including the WAFER, WALTER and GENE series. They are used in industrial automation, machine control, vehicles and other embedded applications. Our engineers help you choose the right processor, interfaces and power supply for your application.

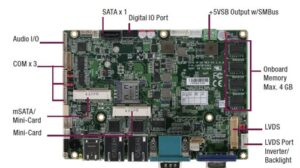

■ Intel® Atom™ E3845/ E3825 and Celeron® Processor SoC. ■ Onboard DDR3L Memory Max
■ Intel® Atom™ E3845/ E3825 and Celeron® Processor SoC. ■ Onboard DDR3L Memory Max. 4 GB. ■ CRT, 18/24-bit Dual-Channel LVDS LCD, HDMI (DP Shared with HDMI/CRT, Optional). ■ 2 CH Audio. ■ SATA 3.0 Gb/s x 1 & mSATA (Shared with Mini-Card). ■ Supports 8-bit Digital I/O, USB2.0 x 3, USB 3.2 Gen 1…
■ 7th Generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC ■ DDR4 1866/2133, SO
■ 7th Generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC ■ DDR4 1866/2133, SODIMM x 1 ■ DVI, 18/24-bit Dual-Channel LVDS ■ 2 CH Audio ■ SATA 6.0 Gb/s x 1 & mSATA (Share with Half-size Mini-Card and Selective by BIOS) ■ Supports 8-bit Digital I/O, USB 2.0 x 2 , USB 3.2 Gen 1 x 4…
■ Intel® Core™ i7/i5/i3/Celeron® Processor SoC ■ DDR4 1866/2133, SODIMM x 1 ■ DV
■ Intel® Core™ i7/i5/i3/Celeron® Processor SoC ■ DDR4 1866/2133, SODIMM x 1 ■ DVI, DP, 18/24-bit Dual-Channel LVDS ■ 2 CH Audio ■ SATA 6.0 Gb/s x 1 & mSATA (Shared with Half-size Mini-Card and Selected by BIOS) ■ Supports 8-bit Digital I/O, USB 2.0 x 2 , USB 3.2 Gen 1 x 4 ■…
Intel® Pentium® N4200/ Celeron® N3350 Processor SoC ■ DDR3L 1866 MHz SODIMM x 1, up t
Intel® Pentium® N4200/ Celeron® N3350 Processor SoC ■ DDR3L 1866 MHz SODIMM x 1, up to 8 GB ■ VGA/LVDS/LVDS2 (HDMI Co-layout with LVDS2 Optional) ■ 2 CH Audio, SATA 6.0 Gb/s x 1, eMMC up to 64G (Optional) ■ Supports 8-bit Digital I/O, USB 2.0 x 2, USB 3.2 Gen 1 x 2, COM…

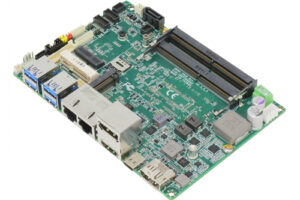

The GENE-TGU6 is built to bring greater performance, more flexibility and support for a br
The GENE-TGU6 is built to bring greater performance, more flexibility and support for a broader range of applications than before. The 11th Generation Intel Core U processors deliver up to 20% better performance over previous generations of embedded processors. The embedded Intel Iris Xe graphics powers brilliant high definition video, with the GENE-TGU6 offering five…

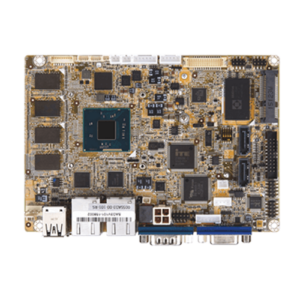

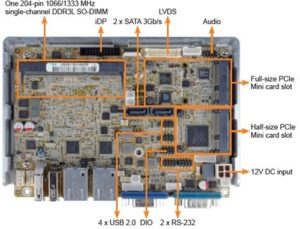

● 3.5” SBC supports Intel® 22nm Atom™ on-board SoC ● Dual independent display sup
● 3.5” SBC supports Intel® 22nm Atom™ on-board SoC ● Dual independent display support ● 1333/1066 MHz 1.35V DDR3L SDRAM up to 8 GB ● COM, USB 3.0, SATA 3Gb/s, PCIe Mini, mSATA and Audio support ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
3.5” SBC supports Intel® 22nm Atom™ on-board SoC ● Dual independent display support
3.5” SBC supports Intel® 22nm Atom™ on-board SoC ● Dual independent display support ● On-board 2 GB/4 GB 1066/1333 MHz DDR3L memory ● COM, USB 3.0, SATA 3Gb/s, PCIe Mini, mSATA and Audio support ● Supports -40°C ~ 85°C ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

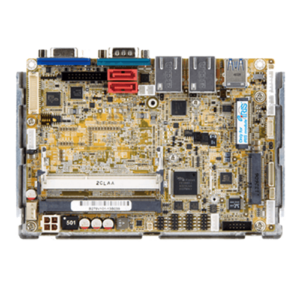

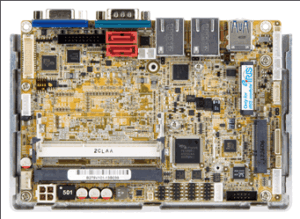

● 3.5 form factor with 4th/5th generation Intel® ULT SoC supports dual-channel DDR3L DI
● 3.5 form factor with 4th/5th generation Intel® ULT SoC supports dual-channel DDR3L DIMMs ● 12V only single voltage design with AT/ATX mode support ● 18/24-bit dual-channel LVDS support ● Support triple independent display via LVDS, VGA and iDP ● Support PCIe Mini card slot for mSATA, 3G card, wireless card and DOM
● 3.5 form factor with 4th/5th generation Intel® ULT SoC supports dual-channel DDR3L DI
● 3.5 form factor with 4th/5th generation Intel® ULT SoC supports dual-channel DDR3L DIMMs ● 12V only single voltage design with AT/ATX mode support ● 18/24-bit dual-channel LVDS support ● Support triple independent display via LVDS, VGA and iDP ● Support PCIe Mini card slot for mSATA, 3G card, wireless card and DOM

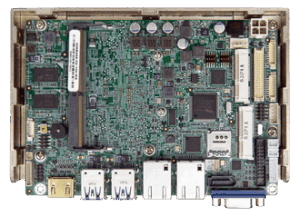

● 3.5” SBC with Intel® 6th Generation ULT processor supports DDR4 SO-DIMM (on-board m
● 3.5” SBC with Intel® 6th Generation ULT processor supports DDR4 SO-DIMM (on-board memory support by request) ● Triple display with VGA/iDP, HDMI and LVDS selection ● Two PCIe Mini with mSATA/SIM card slot support ● Intel® GbE LAN with Intel® AMT 11.0 supported ● IEI One Key Recovery solution allows you to create rapid…
● 3.5” SBC with Intel® 7th Generation ULT processor supports DDR4 SO-DIMM (on-board m
● 3.5” SBC with Intel® 7th Generation ULT processor supports DDR4 SO-DIMM (on-board memory support by request) ● Triple display with VGA/iDP, HDMI and LVDS selection ● Two PCIe Mini with mSATA/SIM card slot support ● Intel® GbE LAN with Intel® AMT 11.0 supported ● IEI One Key Recovery solution allows you to create rapid…

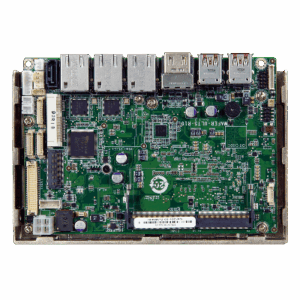

● 3.5” SBC supports Intel® 8th generation Whiskey Lake processor with DDR4 SO-DIMMs
● 3.5” SBC supports Intel® 8th generation Whiskey Lake processor with DDR4 SO-DIMMs ● Triple display with dual HDMI, LVDS selection ● M.2 A Key, PCIe Mini slot with mSATA support ● COM, USB 3.1 Gen2, SATA 6Gb/s support ● Support temperature operation: -20°C ~ 60°C
● 3.5″” form factor with 4th/5th generation Intel® ULT SoC supports dual-ch
● 3.5″” form factor with 4th/5th generation Intel® ULT SoC supports dual-channel DDR3L DIMMs ● 12V only single voltage design with AT/ATX mode support ● 18/24-bit dual-channel LVDS support ● Support triple independent display via LVDS, VGA and iDP ● Support PCIe Mini card slot for mSATA, 3G card, wireless card and DOM
The WAFER-ADL-N is a 3.5-inch SBC with Intel N97 or N200 processors for compact HMIs, kios
The WAFER-ADL-N is a 3.5-inch SBC with Intel N97 or N200 processors for compact HMIs, kiosks and embedded controllers. Intel N97 or N200 processor on board LPDDR5x, 8 GB fitted, up to 16 GB Triple display via HDMI, DisplayPort and iDPM Dual 2.5GbE LAN and USB 3.2 Gen 2 M.2 slot, SATA 6Gb/s and two…
The WAFER-ADL-P is a 3.5″ single board computer with 12th Gen Intel Core processors
The WAFER-ADL-P is a 3.5″ single board computer with 12th Gen Intel Core processors for compact, performance-oriented embedded systems. Intel Core i7, i5, i3 or Celeron on board 8 GB LPDDR4x soldered, up to 32 GB Two HDMI outputs plus DisplayPort Dual 2.5GbE and USB 3.2 Gen2 Four RS-232 ports, SATA and M.2 PCIe Gen3…
The WAFER-AL is a 3.5-inch single board computer with Intel Pentium or Celeron Apollo Lake
The WAFER-AL is a 3.5-inch single board computer with Intel Pentium or Celeron Apollo Lake SoCs for HMIs, kiosks and compact embedded controllers. Pentium N4200 quad-core or Celeron N3350 dual-core DDR3L SO-DIMM, up to 8 GB Triple display with DP++, VGA, LVDS and iDP Dual Realtek GbE LAN Two SATA 6Gb/s and two Mini PCIe…
The WAFER-ASL is a 3.5-inch single board computer with Intel Atom x7000RE processors for r
The WAFER-ASL is a 3.5-inch single board computer with Intel Atom x7000RE processors for rugged embedded systems that must run from -40 to 85°C. Intel Atom x7835RE or x7433RE on board One DDR5-4800 SO-DIMM, up to 16 GB Three Intel 2.5GbE ports HDMI 4K60, DisplayPort and iDPM outputs M.2 A-key and M-key, one SATA 6Gb/s…

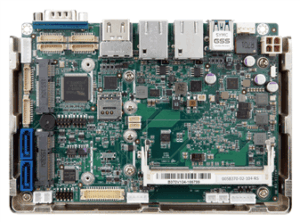

● 3.5″” SBC supports Intel® 14nm Pentium®/Celeron® on-board SoC ● Tripl
● 3.5″” SBC supports Intel® 14nm Pentium®/Celeron® on-board SoC ● Triple independent display support ● 1.35V DDR3L 1333/1600 MHz SDRAM up to 8 GB ● COM, USB 3.0, SATA 6Gb/s, PCIe Mini, mSATA and Audio support ● Two full-size PCIe Mini slots (one with SIM holder for WLAN/WWAN expansion) ● IEI One Key Recovery solution…
The WAFER-EHL is a 3.5-inch embedded SBC with an Intel Celeron J6412 for compact HMI, kios
The WAFER-EHL is a 3.5-inch embedded SBC with an Intel Celeron J6412 for compact HMI, kiosk and automation devices. Intel Celeron J6412 quad-core on board, 10 W 8 GB LPDDR4x on board, up to 16 GB Three displays via DP, 4K HDMI and iDPM module Dual Intel 2.5GbE LAN and USB 3.2 Gen 2 PCIe…
The WAFER-EHL-x6000 is a 3.5-inch SBC with Intel Atom x6000E processors for wide-temperatu
The WAFER-EHL-x6000 is a 3.5-inch SBC with Intel Atom x6000E processors for wide-temperature embedded systems in transport, energy and automation. Atom x6425E, x6413E or x6211E on board 8 GB LPDDR4x memory on board Triple display via HDMI, DisplayPort and iDPM Dual Intel 2.5GbE and USB 3.2 Gen 2 M.2 A-key and B-key, SATA 6Gb/s, two…
The WAFER-EHL2 is a 3.5″ single board computer with an Intel Celeron J6412 for low-p
The WAFER-EHL2 is a 3.5″ single board computer with an Intel Celeron J6412 for low-power HMI, kiosks and compact automation devices. Quad-core Intel Celeron J6412, 10 W TDP 8 GB LPDDR4x on board, up to 16 GB Triple displays via DP, HDMI and iDPM Dual 2.5GbE LAN and USB 3.2 Gen2 Multiple RS-232 ports on…
The WAFER-IMX8MP is a 3.5-inch Arm single board computer with NXP i.MX 8M Plus and NPU for
The WAFER-IMX8MP is a 3.5-inch Arm single board computer with NXP i.MX 8M Plus and NPU for vision, HMI and edge AI devices. Quad-core Cortex-A53 up to 1.8 GHz Neural processing unit up to 2.3 TOPS 4 GB LPDDR4 and 16 GB eMMC onboard HDMI 2.0a and four-lane MIPI CSI input Dual GbE, RS-232/422/485 and…
The WAFER-JL is a 3.5-inch single board computer with Intel Celeron N5105 for compact gate
The WAFER-JL is a 3.5-inch single board computer with Intel Celeron N5105 for compact gateways, kiosks and automation controllers needing three LAN ports. Intel Celeron N5105 quad-core, 10 W TDP One DDR4-2933 SO-DIMM, up to 16 GB Three Intel 2.5GbE LAN ports Dual displays, HDMI up to 4K M.2 A-key and B-key with SIM holder…
The WAFER-MTL is a 3.5-inch embedded SBC with Intel Core Ultra processors for compact edge
The WAFER-MTL is a 3.5-inch embedded SBC with Intel Core Ultra processors for compact edge AI, vision and automation systems. Intel Core Ultra 7 155U or Core Ultra 5 125U One DDR5-5600 SO-DIMM, up to 48 GB Up to four displays, including 4K HDMI Dual Intel 2.5GbE LAN M.2 E-key for Wi-Fi and M.2 B-key…
The WAFER-RK3568 is a 3.5-inch Arm SBC with Rockchip RK3568 for low-power HMIs, gateways a
The WAFER-RK3568 is a 3.5-inch Arm SBC with Rockchip RK3568 for low-power HMIs, gateways and connected devices running Android or Debian. Rockchip RK3568 quad-core Cortex-A55, up to 2.0 GHz 2/4 GB LPDDR4 and 16/32 GB eMMC on board HDMI 2.0, eDP and MIPI DSI display outputs Dual GbE, two RS-232 and two RS-485 M.2 B-key…
