Jasper Rugged COM Express Carrier and SBC
Jasper Rugged COM Express Carrier and SBC

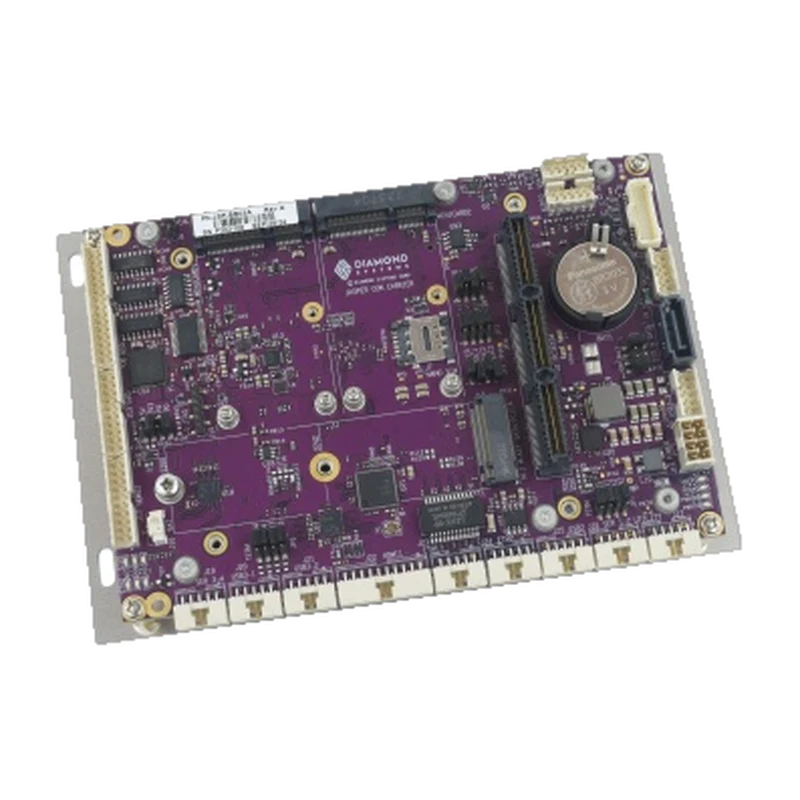

The Diamond Systems Jasper is a rugged 3.5-inch COM Express Type 6 carrier board and SBC with built-in data acquisition for long-life systems.
COM Express Type 6 Basic and Compact modules
Ready SBC with 11th/13th Gen Core i7 or Xeon, up to 64 GB
2 Gigabit Ethernet, 5 USB, 4 RS-232/422/485
2 HDMI and dual-channel LVDS
16 A/D, 4 D/A and 16 GPIO with autocalibration
2 minicards, M.2 and PCIe/104 expansion
12 VDC or 18–34 VDC, -40 to +85 °C
Additional information
| Sector | Factory Automation |
|---|---|
| Temperature range | -40°C ~ 85°C |
| Supply voltage | 12 VDC, 18–34 VDC |
| Max memory | 64GB |
| Operating system | Linux, Windows |
| Dimensions | 146 x 102 mm |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| LAN ports | 2 |
| USB ports | 5 |
| COM ports | 4 |
| Serial standard | RS-232, RS-422, RS-485 |
| Display outputs | 3 |
| Analog inputs | 16 |
| Analog outputs | 4 |
| Expansion slots | M.2, Mini PCIe, PCIe |
