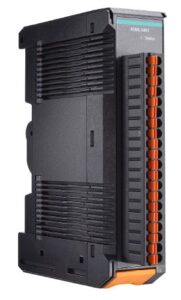

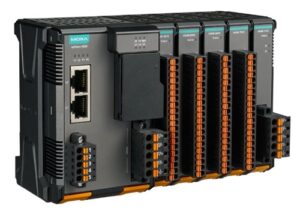

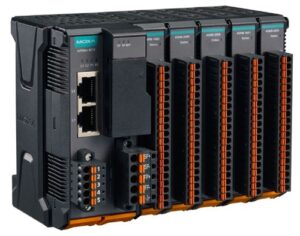

Automotion I/O is a modular I/O range within SCN’s PLC systems for signals close to the process. SCN supplies Automotion I/O from Moxa, including the 4510 and 4530 units together with 45ML and 45MR modules, which are combined to match the number and type of signals required. They are used for data acquisition and control in industrial automation and machine building. Our engineers help you choose the right modules and configuration for your application.
Easy tool-free installation and removal. Easy web configuration and reconfiguration. Built
Easy tool-free installation and removal. Easy web configuration and reconfiguration. Built-in Modbus RTU gateway function. Supports Modbus/SNMP/RESTful API/MQTT. Supports SNMPv3, SNMPv3 Trap, and SNMPv3 Inform with SHA-2 encryption. Supports up to 32 I/O modules. -40 to 75°C wide operating temperature model available.
-40 to 75°C wide operating temperature model available. Supports TPM v2.0 (optional). Eas
-40 to 75°C wide operating temperature model available. Supports TPM v2.0 (optional). Easy tool-free installation and removal. Moxa Industrial Linux with secure boot function. Supports up to 64 I/O modules. Built-in Azure/AWS/Alibaba Cloud library. Built-in OPC UA server library.
Easy tool-free installation and removal. Wide operating temperature model available: -40 t
Easy tool-free installation and removal. Wide operating temperature model available: -40 to 75°C.
Easy tool-free installation and removal. Built-in LED indicators for IO channels. Wide ope
Easy tool-free installation and removal. Built-in LED indicators for IO channels. Wide operating temperature range: -40 to 75°C.
The ioLogik 2500 is a smart Ethernet remote I/O unit with built-in switch and Click&Go
The ioLogik 2500 is a smart Ethernet remote I/O unit with built-in switch and Click&Go Plus logic for distributed industrial data acquisition. Models with 8 DI/8 DIO or 12 DIO/4 AI Built-in 4-port 10/100 Mbps unmanaged Ethernet switch IP30 metal housing, -40 to 75°C on -T models Two RS-232/422/485 ports with Modbus RTU master Daisy-chain…
The ioLogik E1200 is an industrial Ethernet remote I/O family that serves both PLC/SCADA a
The ioLogik E1200 is an industrial Ethernet remote I/O family that serves both PLC/SCADA and IT systems with digital, analog and temperature signals. DI, DO, relay, AI, AO, RTD or thermocouple models Two switched Ethernet ports for daisy-chained I/O stations -T models operate from -40 to 75°C Modbus TCP, EtherNet/IP, RESTful API and SNMP in…
The ioLogik E1500 is a rugged Ethernet remote I/O module for rolling stock and wayside sys
The ioLogik E1500 is a rugged Ethernet remote I/O module for rolling stock and wayside systems, with M12 Ethernet and Modbus TCP connectivity. E1510: 12 digital inputs, E1512: 4 DI plus 4 DIO 10/100 Mbps Ethernet on an M12 D-coded connector Aluminium housing for DIN-rail or wall mounting Wide operating temperature from -40 to 85°C…
The ioLogik E2200 is a smart Ethernet remote I/O for PC-based data acquisition and control
The ioLogik E2200 is a smart Ethernet remote I/O for PC-based data acquisition and control, reporting events actively to SCADA instead of polling. Digital, relay, analogue, RTD and thermocouple I/O models Click&Go local control logic with up to 24 rules Plastic housing for DIN-rail or wall mounting -T models rated for -40 to 75°C Modbus…
The ioLogik R1200 is an RS-485 serial remote I/O module for cost-effective, two-wire Modbu
The ioLogik R1200 is an RS-485 serial remote I/O module for cost-effective, two-wire Modbus RTU process control and data acquisition systems. Digital, relay, analogue input and analogue output variants Dual RS-485 ports with built-in repeater function Compact plastic housing for DIN-rail or wall mounting Standard -10 to 75°C, -T models -40 to 85°C Modbus RTU…
The ioMirror E3200 replaces long signal cables by mirroring digital inputs to remote outpu
The ioMirror E3200 replaces long signal cables by mirroring digital inputs to remote outputs over Ethernet, for PLC, DCS and tank monitoring sites. 8 digital inputs and 8 digital outputs per unit Input-to-output signal transfer typically within 20 ms One 10/100 Mbps port over copper, fiber or wireless Rated -10 to 60°C, DIN-rail or wall…
The ioPAC 6500 is a fully modular Linux-based RTU controller for SCADA, utility and proces
The ioPAC 6500 is a fully modular Linux-based RTU controller for SCADA, utility and process sites, built from hot-swappable CPU, I/O and communication modules. One control unit plus up to 4 expansion units Tool-free, hot-swap CPU, power and I/O modules DIN-rail or optional rack mounting, -40 to 75°C IEC 61131-3 programming in the IINxpress IDE…
The ioPAC 8600 is a modular programmable controller for rolling stock and wayside automati
The ioPAC 8600 is a modular programmable controller for rolling stock and wayside automation, combining C/C++ or IEC 61131-3 programming with EN 50155 compliance. Cortex-A8 1 GHz CPU running real-time Linux Backplanes with 5, 9 or 12 slots for 85M/86M modules Metal housing rated for -40 to 75°C Two Ethernet ports, M12 or RJ45, with…
