45MR
45MR

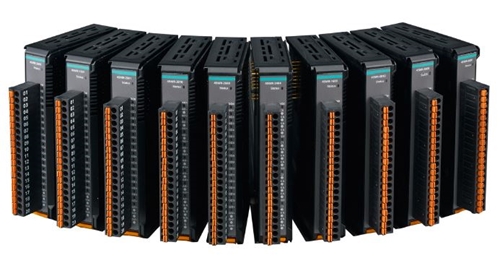

The Moxa 45MR is a DIN-rail I/O module for modular control and PLC systems in factory automation and energy applications.
Variants with 8 or 16 digital inputs or outputs
Analog variants with 8 inputs or 4 outputs
Normally open contacts rated 2 A AC/DC, 5,000,000 mechanical cycles
10 ms response time and ±0.1% accuracy
Built-in LED indicators for each I/O channel
Tool-free installation and removal
-40 to 75 °C, 12–48 VDC, IP30 housing, UL
Our guides help you choose the right product.
What is a PLC? How it works and how to choose oneAdditional information
| Built-in I/O | No |
|---|---|
| I/O slave module | No |
| IP Classification | IP30 |
| Mounting | DIN rail |
| Sector | Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
| Material | Plastic |
| Temperature range | -40°C ~ 75°C |
| Supply voltage | 12–48 VDC |
| Digital inputs | 16, 8 |
| Digital outputs | 16, 8 |
| Analog inputs | 8 |
| Analog outputs | 4 |
| Contact config | Normally open (NO) |
| Max current | 2 A AC, 2 A DC |
| Mechanical cycles | 5.000.000 |
| Response time | 10 ms |
| Accuracy | ±0,1% |
| Dimensions | 19,5 x 99 x 60,5 mm |
| Weight | 73,6 g, 88,4 g |
| MTBF | 256.886.914 h, 638.652 h |
| Approvals | UL |
