PCB mount

PCB mount power contactors are mounted directly on the circuit board for compact designs. SCN supplies GIGAVAC GV120, GV140, GV220 and GV240, the PWM-regulated GV350, GVL140, P126, the high-voltage RER02 (40 A up to 1000 VDC) and RXR06, and the RXX50 series. They are used in chargers, battery systems and power electronics. Our engineers help you choose the right voltage, current rating, contact arrangement and coil option for your application.

Solution areas

Product categories

Brands

GV120 Contactor for PCB mount
PCB-mount contactor, 200 A, hermetically sealed, IP67

PCB-mount contactor, 200 A, hermetically sealed, IP67

View details
GV140 Contactor for PCB
PCB-mount contactor, 400 A, hermetically sealed, IP67

PCB-mount contactor, 400 A, hermetically sealed, IP67

View details
GV220 Contactor for PCB mount
PCB-mount contactor, 200 A, 12/24/48 V DC coil

PCB-mount contactor, 200 A, 12/24/48 V DC coil

View details
GV240 Contactor for PCB mount
PCB-mount contactor, 400 A, 12/24/48 V DC coil

PCB-mount contactor, 400 A, 12/24/48 V DC coil

View details
GV350 PWM regulated Contactor for PCB mount
PWM-regulated contactor, 500 A, IP67 and IP69K

PWM-regulated contactor, 500 A, IP67 and IP69K

View details
GVL140 Contactor for PCB mount
PCB-mount contactor, 400 A, 12/24 V DC coil

PCB-mount contactor, 400 A, 12/24 V DC coil

View details
P125 MiniTACTOR Contactor 30 A
PCB contactor, 30 A, up to 1200 VDC, 90 g

PCB contactor, 30 A, up to 1200 VDC, 90 g

View details
P126 Contactor for PCB mount
Compact PCB contactor, 60 A, 90 g, any mounting orientation

Compact PCB contactor, 60 A, 90 g, any mounting orientation

View details

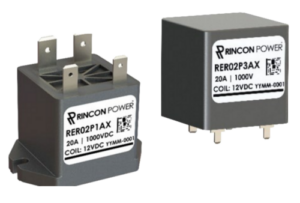

RER02 High Voltage Contactor 40A up to 1000VDC
High-voltage contactor, 12/24 V DC coil, PCB mount

High-voltage contactor, 12/24 V DC coil, PCB mount

View details
RXR06 High Voltage Contactor
High-voltage contactor, 60 A, 750 V DC, IP69

High-voltage contactor, 60 A, 750 V DC, IP69

View details
RXX50 Series for PCB mount
PCB-mount HV contactor, 500 A, 3 MW interrupt rating

PCB-mount HV contactor, 500 A, 3 MW interrupt rating

View details

Read more in our guides

Facts and advice that make the choice easier.

Relay vs contactor vs SSR – which should you choose?All guides
