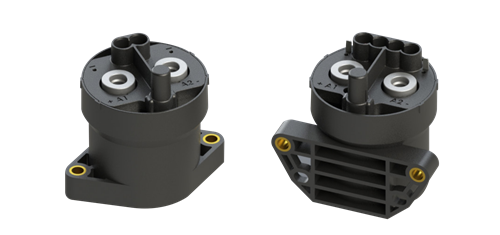

GV350 PWM regulated Contactor for PCB mount
GV350 PWM regulated Contactor for PCB mount
GV350 is a compact, hermetically sealed and gas-filled DC power contactor with external PWM coil control for vehicle and mobile power systems.
Carries 500 A continuous at up to 1000 VDC
Exceeds IP67 and IP69K, salt fog tested to MIL-STD-810
Operating temperature -55 °C to +85 °C
12 or 24 VDC coil for external PWM regulation
Side or upright mounting, around 76 x 81 mm, 390 g
Optional auxiliary contact that follows the main contact position
1,000,000 mechanical cycles and 20 ms response time
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Auxiliary contact | Normally open (NO) |
|---|---|
| Coil Voltage | 12 VDC, 24 VDC |
| Contact config | Normally open (NO) |
| Continuous current | 500 A DC |
| Mechanical cycles | 1.000.000 |
| Mounting | Side, Up-Right |
| Sector | Vehicle Solutions |
| IP Classification | IP67, IP69K |
| Temperature range | -55°C ~ 85°C |
| Approvals | MIL-STD-810 |
| Max system voltage | 1000 VDC |
| Current direction | Unidirectional |
| Weight | 0,39 kg |
| Shock | 50 G |
| Vibration | 25 G |
| Response time | 20 ms |
