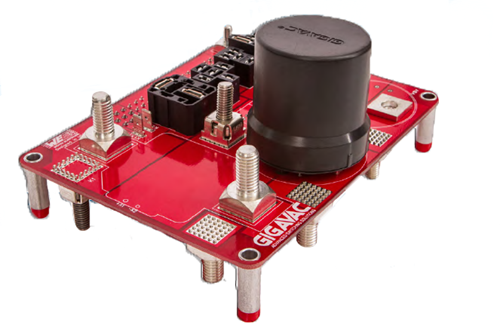

GV240 Contactor for PCB mount
GV240 Contactor for PCB mount
With PCB mounting, you can save on costs when cables and connectors are minimized or completely eliminated.
Still, the contactor is hermetically sealed and developed according to UL1604 and IP67 as well as RoHS and CE. Flame retardant according to SAE J1171 and ISO8846.
Mounting is possible in all directions for easy installation.
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Auxiliary contact | Normally open (NO) |
|---|---|
| Coil Voltage | 12 VDC, 24 VDC, 48 VDC |
| Contact config | Normally open (NO) |
| Continuous current | 400 A DC |
| Mechanical cycles | 1.000.000 |
| Mounting | PCB |
| Sector | Vehicle Solutions |
| IP Classification | Hermetic, IP67, IP69K |
| Temperature range | -55°C ~ 85°C |
| Max system voltage | 800 VDC |
| Current direction | Unidirectional |
| Approvals | Class I Div 2, MIL-STD-810 |
| Weight | 0,38 kg |
| Shock | 50 G |
| Vibration | 25 G |
| Response time | 25 ms |
