SDR-960 Power Supply 960W
SDR-960 Power Supply 960W

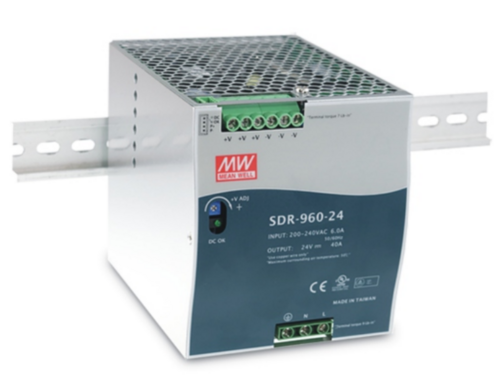

Mean Well SDR-960 is a 960 W single-phase DIN rail power supply with 24 or 48 VDC output for control cabinets with high power demand.
94 % efficiency with built-in active PFC
130 % peak load for 3 seconds
Parallel operation with current sharing up to 4 units
Fanless, cooled by free air convection, -30 to 70 °C
DC OK relay contact and front-panel voltage adjustment
110 mm wide, for TS-35/7.5 or 15 DIN rail
UL, CUL, TUV and CB certified
Our guides help you choose the right product.
Industrial power supplies – DIN rail, DC/DC and UPSAdditional information
| Output Voltage | 24 VDC, 48 VDC |
|---|---|
| Rated power | 960W |
| Supply voltage | 180–264 VAC, 254–370 VDC |
| Sector | Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
| Output current | 40 A DC |
| Efficiency | 94 % |
| Temperature range | -30°C ~ 70°C |
| Approvals | UL |
| Mounting | DIN rail |
| Dimensions | 110 x 125,2 x 150 mm |
| Weight | 2,47 kg |
| MTBF | 69.800 h |
| Vibration | 2 G |
| Cooling | Fanless |
