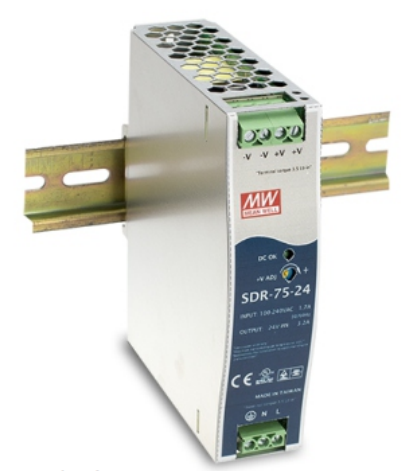

SDR-75 Power supply 75W
SDR-75 Power supply 75W
Features
– High efficiency 90% and low power dissipation
– 150% peak load capability
– Protections: Short circuit / Overload / Over voltage / Over temperature
– Cooling by free air convection
– Can be installed on DIN rail TS-35/7.5 or 15
– UL 508 (industrial control equipment) approved
– EN61000-6-2(EN50082-2) industrial immunity level
– 100% full load burn-in test
– 3 years warranty
Our guides help you choose the right product.
Industrial power supplies – DIN rail, DC/DC and UPSAdditional information
| Output Voltage | 12 VDC, 24 VDC, 48 VDC |
|---|---|
| Rated power | 76,8W |
| Supply voltage | 124–370 VDC, 88–264 VAC |
| Sector | Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
| Output current | 6,3 A DC |
| Efficiency | 90 % |
| Temperature range | -30°C ~ 70°C |
| Approvals | UL |
| Mounting | DIN rail |
| Dimensions | 32 x 125,2 x 102 mm |
| Weight | 0,51 kg |
| MTBF | 479.800 h |
| Vibration | 2 G |
