SDR-480P Single Output Industrial DIN RAIL with PFC and Parallel Function 480W
SDR-480P Single Output Industrial DIN RAIL with PFC and Parallel Function 480W

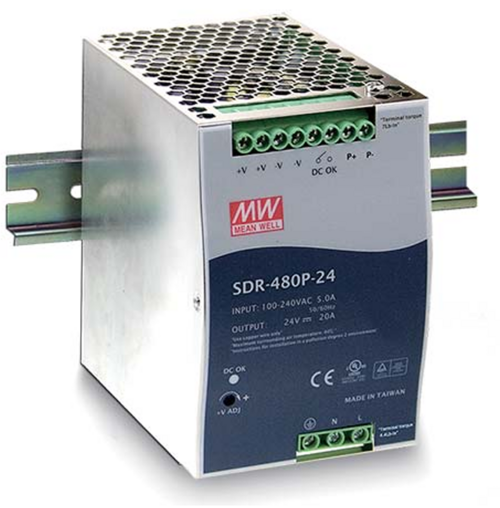

Mean Well SDR-480P is a 480 W DIN rail power supply with 24 or 48 VDC output and built-in parallel function for scalable industrial systems.
Current sharing up to 3840 W with 7+1 units
94 % efficiency, active PFC with PF above 0.94
150 % peak load capability
Constant current limiting, short circuit and overtemperature protection
Built-in DC OK relay contact
Fanless, for TS-35/7.5 or 15 DIN rail
UL 508 approved, EN 61000-6-2 industrial immunity
Our guides help you choose the right product.
Industrial power supplies – DIN rail, DC/DC and UPSAdditional information
| Output Voltage | 24 VDC, 48 VDC |
|---|---|
| Rated power | 480W |
| Supply voltage | 127–370 VDC, 90–264 VAC |
| Sector | Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
| Output current | 20 A DC |
| Efficiency | 94 % |
| Temperature range | -25°C ~ 70°C |
| Approvals | UL |
| Mounting | DIN rail |
| Dimensions | 85,5 x 125,2 x 128,5 mm |
| Weight | 1,6 kg |
| MTBF | 118.600 h |
| Vibration | 2 G |
| Cooling | Fanless |
