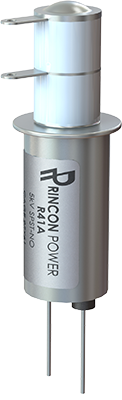

R41B High Voltage relays 5kV Normally closed (NC)
R41B High Voltage relays 5kV Normally closed (NC)
Voltage Rating:5kV
Current Rating:30A
Contact Form:B = Normally Closed
Contact Arrangement:SPST-NC
Application:Make/Break Load Switching
R41B series high voltage relays are engineered to meet demanding load requirements while maintaining a compact design. The RF-rated design ensures exceptional performance in applications requiring precise switching and reliable isolation up to 5kV. Equipped with tungsten contacts, the R41B delivers enhanced make and break load switching capabilities and can continuously carry up to 10 amps. Common applications include antenna tuning units (ATUs) and high voltage test equipment. Featuring a Single Pole Single Throw, Normally Closed (SPST-NC) configuration, this relay offers a simple yet effective solution for isolation, utilizing a single stationary contact to ensure continuity until coil power is applied, at which point the contacts open to provide isolation.
Additional information
| Coil Voltage | 12VDC, 26,5VDC |
|---|---|
| Contacts | SPST |
| Max current | 30A |
| Max system voltage | 5kV |
| Mechanical cycles | 2.000.000 |
| Sector | Factory Automation |
