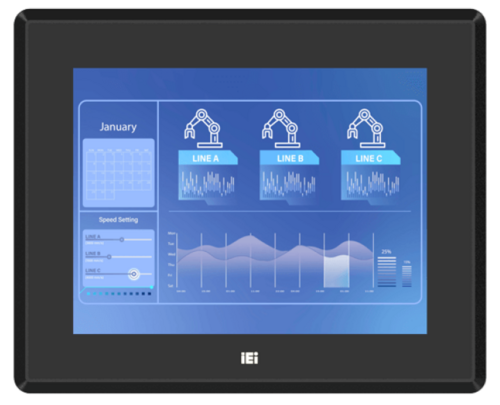

Panel PC 10.4″ – PPC2-C10-EHL
Panel PC 10.4″ – PPC2-C10-EHL
The IEI PPC2-C10-EHL is a 10.4-inch fanless panel PC with Intel Celeron J6412 processor for HMI and machine operation.
Intel Elkhart Lake platform with 8 GB memory
800×600 projected capacitive touchscreen, 400 nits
Anti-glare, anti-UV surface, usable with gloves or wet hands
Two LAN, four USB and three RS-232/422/485 ports
Dual M.2 slots with B key and M key
Redesigned panel mount kit, also rack, VESA or wall
12–24 VDC input, -10 to 60 °C operation
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCPanel PCs – how to choose display, touch and IP ratingAdditional information
| IP Classification | Unrated |
|---|---|
| Screen size | 10'' |
| Touch | Capacitive |
| Mounting | Panel, Rack, VESA, Wallmount |
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Renewables |
| Temperature range | -10°C ~ 60°C |
| Supply voltage | 12–24 VDC |
| Processor | Intel Celeron J6412 |
| Display resolution | 800×600 |
| Brightness (nits) | 400 nits |
| LAN ports | 2 |
| USB ports | 4 |
| COM ports | 3 |
| Serial standard | RS-232, RS-422, RS-485 |
| Display outputs | 1 |
| Cooling | Fanless |
| Dimensions | 285,2 x 232,4 x 49,9 mm |
| Weight | 2,335 kg |
| Operating system | Linux, Windows |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| Memory | 8GB |
