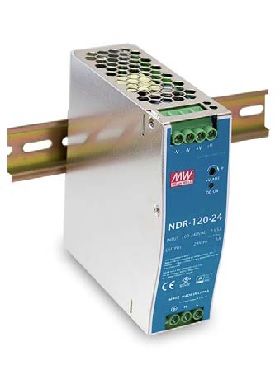

NDR-120 Power Supply 120W
NDR-120 Power Supply 120W
Mean Well NDR-120 is an economical 120 W DIN rail power supply, only 40 mm wide, that saves space in industrial control cabinets.
Full-range 90–264 VAC input, 12, 24 or 48 VDC output
Up to 89 % efficiency in a metal housing
Operates from -20 to 70 °C with free air convection
Constant current overload protection for inductive and capacitive loads
Meets EN 61000-3-2 harmonic current limits
For TS-35/7.5 or TS-35/15 DIN rail
UL 508 and TUV EN 62368-1 approved
Our guides help you choose the right product.
Industrial power supplies – DIN rail, DC/DC and UPSAdditional information
| Output Voltage | 12 VDC, 24 VDC, 48 VDC |
|---|---|
| Rated power | 120W |
| Supply voltage | 127–370 VDC, 90–264 VAC |
| Sector | Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
| Output current | 10 A DC |
| Efficiency | 89 % |
| Temperature range | -20°C ~ 70°C |
| Approvals | UL |
| Mounting | DIN rail |
| Dimensions | 40 x 125,2 x 113,5 mm |
| Weight | 0,6 kg |
| MTBF | 453.300 h |
| Vibration | 2 G |
| Cooling | Fanless |
