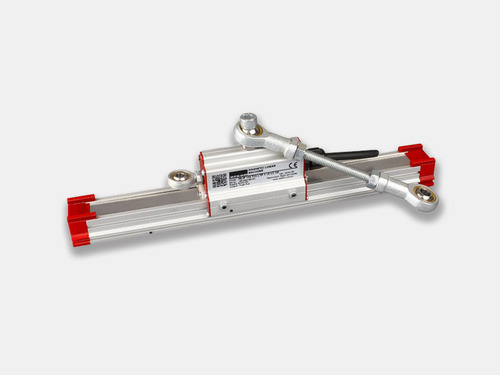

MLIP Magnetic Linear Incremental Encoder
MLIP Magnetic Linear Incremental Encoder
The Opkon MLIP magnetic linear encoder is a profile-based incremental system for long axes up to 50 m, with support for multiple reader heads.
Measuring range from 50 mm up to 50 m
Resolution 2.5 to 25 µm in 4x mode
Accuracy ±40 µm
Aluminium profile, IP66 protection
Push-Pull, TTL, Linedriver or HLD output
Cable connection, 5 to 24 VDC, -20 to +80 °C
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KAdditional information
| IP Classification | IP66 |
|---|---|
| Stroke length | 50-50000mm |
| Measuring technology | Magnetic |
| Material | Aluminium |
| Mounting | Profile |
| Electrical connection | cable |
| Supply voltage | 12 VDC, 24 VDC, 5 VDC, 8–24 VDC |
| Sector | Factory Automation |
| Temperature range | -20°C ~ 80°C |
| Accuracy | ±40µm |
| Measured variable | Position |
| Measuring range | 50-50000mm |
