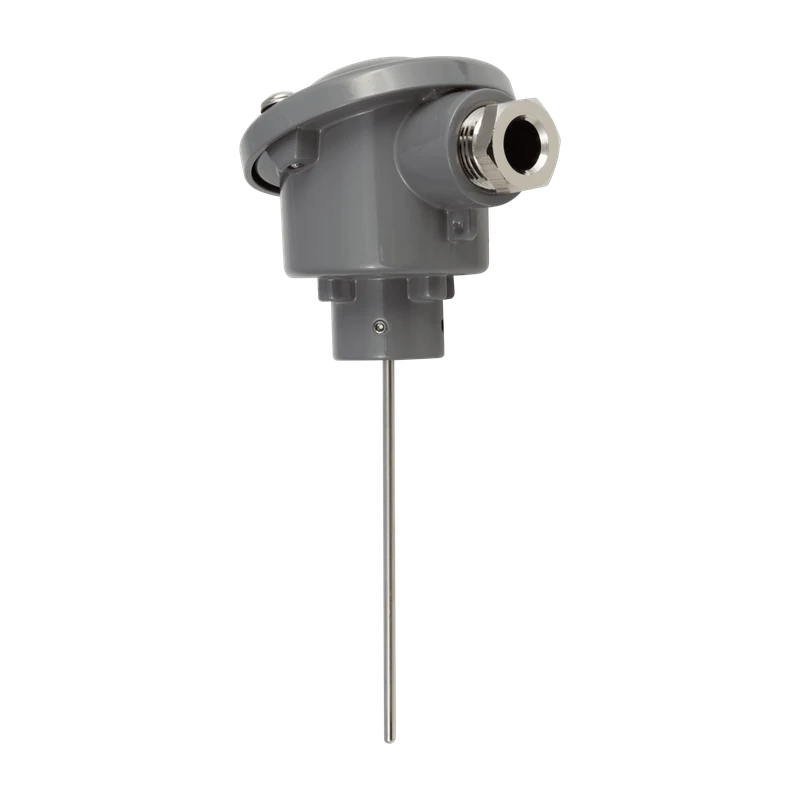

TC-TM3 Mineral-Insulated Thermocouple
TC-TM3 Mineral-Insulated Thermocouple
Bendable mineral-insulated thermocouple with connection head for high-temperature monitoring in power plants, process plants, engines, steel and cement production.
Thermocouple type K, J, E, N, T, R or S
Up to 1600 °C depending on thermocouple type
AISI 316Ti, EN 1.4841 or Inconel 600 sheath
Ø1 to Ø6 mm, 150 to 1000 mm, bendable
Adjustable 1/4” or 1/2” BSP nipple
Heads up to IP68, M12 plug or cable
Optional head transmitter with 4–20 mA or HART
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KPT100 vs thermocouple – how to choose a temperature sensorAdditional information
| Sector | Factory Automation, Infrastructure & Energy |
|---|---|
| Accuracy | Class 1, Class 2 |
| Communication Interface | Analog 4-20mA, HART |
| Electrical connection | cable, Connection head, M12 connector |
| IP Classification | IP54, IP62, IP65, IP67, IP68 |
| Material | AISI 316Ti, Aluminium, Inconel 600 |
| Measured variable | Temperature |
| Measuring technology | Thermocouple type E, Thermocouple type J, Thermocouple type K, Thermocouple type N, Thermocouple type S, Thermocouple type T |
| Probe length | 1000mm, 150mm |
| Process connection | 1/2'' BSP, 1/4'' BSP |
