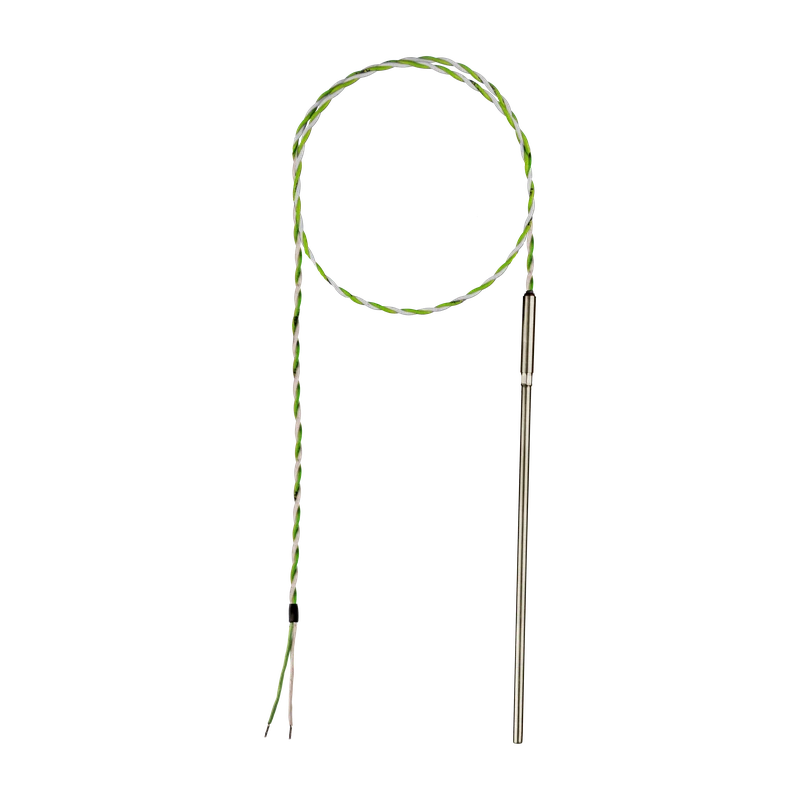

RT-RM2 Mineral-Insulated Temperature Sensor
RT-RM2 Mineral-Insulated Temperature Sensor
Mineral-insulated Pt100 temperature sensor with bendable MI cable and fixed cable for processing plants, engineering industry and drying plants.
Temperature range up to +400 or +600 °C
Pt100 or Pt1000, class A to 1/10 DIN
Bendable AISI 316Ti MI sheath, Ø3, Ø4.5 or Ø6 mm
Nominal length 150 to 1000 mm, fast reaction
Fixed SS, SBS or TBT cable, IP54 or IP67
Adjustable 1/4″, 3/8″ or 1/2″ BSP coupling
Optional 4–20 mA or HART transmitter in enclosure
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KPT100 vs thermocouple – how to choose a temperature sensorAdditional information
| Sector | Factory Automation |
|---|---|
| Accuracy | 1/10 DIN, 1/3 DIN, 1/6 DIN, Class A, Class B |
| Communication Interface | Analog 4-20mA, HART |
| Electrical connection | cable |
| IP Classification | IP54, IP67 |
| Material | AISI 316Ti |
| Measured variable | Temperature |
| Measuring technology | PT100, PT1000 |
| Probe length | 1000mm, 150mm |
| Process connection | 1/2'' BSP, 1/4'' BSP, 3/8'' BSP |
| Temperature range | -25°C ~ 120°C |
