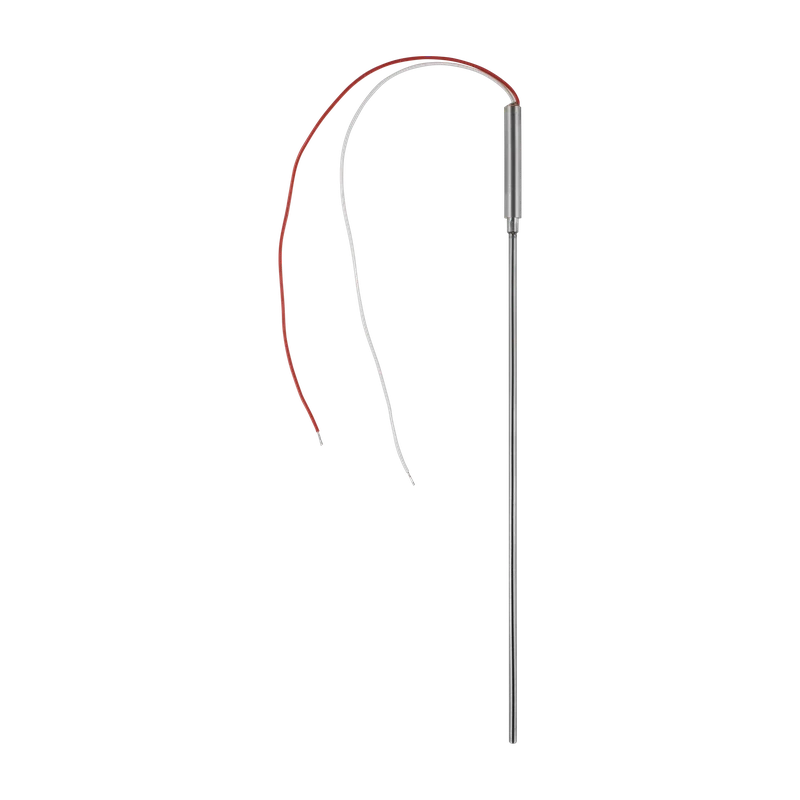

RT-RM1 Mineral-Insulated Pt100 Sensor
RT-RM1 Mineral-Insulated Pt100 Sensor
Bendable mineral-insulated Pt100 temperature sensor with free leads for machines, drying plants and processing plants where space is tight.
Pt100 or Pt1000 to IEC 60751, up to 600 °C
Bendable MI sheath for routing in confined spaces
AISI 316Ti sheath Ø3, Ø4,5 or Ø6 mm
Nominal lengths 150 to 1000 mm, special on request
Free leads 0,1–3 m in plastic, silicone or Teflon
Adjustable 1/4 or 1/2 inch BSP coupling
Quick reaction time and good vibration resistance
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KPT100 vs thermocouple – how to choose a temperature sensorAdditional information
| Sector | Factory Automation |
|---|---|
| Accuracy | 1/10 DIN, 1/3 DIN, 1/6 DIN, Class A, Class B |
| Electrical connection | Free leads |
| Material | AISI 316Ti |
| Measured variable | Temperature |
| Measuring technology | PT100, PT1000 |
| Probe length | 1000mm, 150mm |
| Process connection | 1/2'' BSP, 1/4'' BSP |
| Temperature range | -25°C ~ 120°C |
