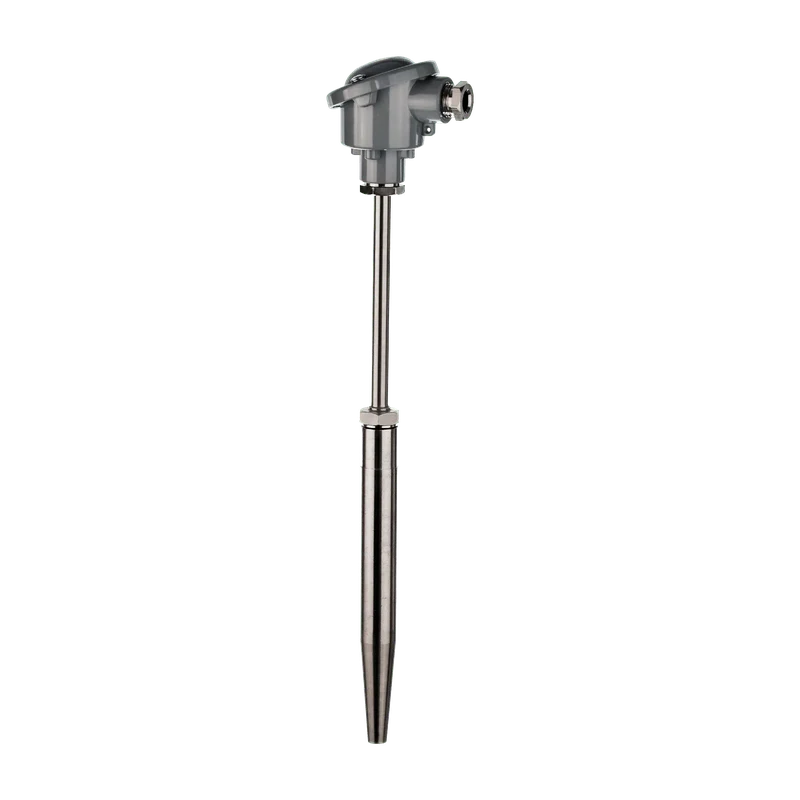

RT-D / TC-D Sensor with Weld-in Thermowell
RT-D / TC-D Sensor with Weld-in Thermowell
High-pressure Pt100 or thermocouple temperature sensor with solid weld-in thermowell for steam, feedwater, gas and chemical pipelines in boilers and power plants.
RT-D up to 600 °C, TC-D up to 650 °C
Tapered solid bar thermowell for up to 500 bar
Pt100, Pt1000 or type K, J, N, E thermocouple
Insert replaceable while the thermowell stays welded in
Thermowell in 1.7335, 1.0460, AISI 316Ti or 316L
Heads from IP54 to IP68, M12 plug or cable
Optional head transmitter with 4–20 mA or HART
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KPT100 vs thermocouple – how to choose a temperature sensorAdditional information
| Sector | Factory Automation, Infrastructure & Energy |
|---|---|
| Accuracy | 1/10 DIN, 1/3 DIN, 1/6 DIN, Class A, Class B |
| Communication Interface | Analog 4-20mA, HART |
| Electrical connection | cable, Connection head, M12 connector |
| IP Classification | IP54, IP62, IP65, IP67, IP68 |
| Material | AISI 316L, AISI 316Ti, Aluminium, EN 1.0460, EN 1.7335 |
| Measured variable | Temperature |
| Measuring technology | PT100, PT1000, Thermocouple type E, Thermocouple type J, Thermocouple type K, Thermocouple type N |
| Probe length | 140mm, 260mm |
| Process connection | Weld-in |
