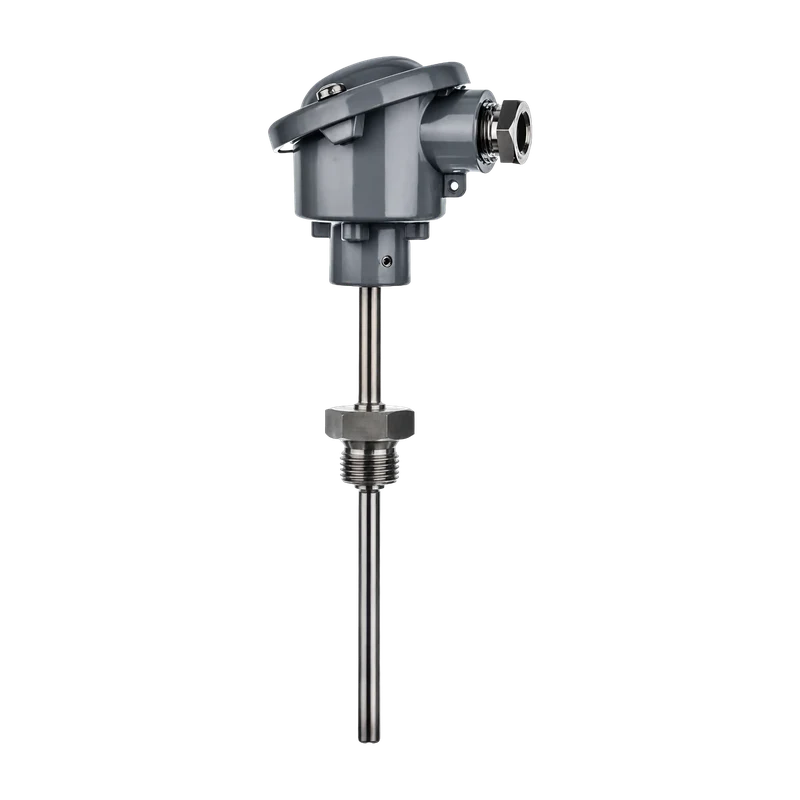

RT-BUI / TC-BUI Fixed Insert Temperature Sensor
RT-BUI / TC-BUI Fixed Insert Temperature Sensor
Marine and industrial Pt100 or thermocouple temperature sensor with fixed insert for pipes and tanks, fitted directly or in a KP thermowell.
Pt100/Pt1000 up to 600 °C, thermocouple up to 1150 °C
Rated for 50 bar and 25 m/s flow velocity
Fits MA-PW1, MA-PW4 and MA-PW-TU thermowells
AISI 316Ti tube Ø6–15 mm, lengths 50–300 mm
Welded or adjustable coupling, 1/4 to 1 inch
Heads IP54 to IP68, optional 4–20 mA transmitter
Marine approved by DNV, LR, BV, ABS, NK and RINA
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KPT100 vs thermocouple – how to choose a temperature sensorAdditional information
| Sector | Factory Automation, Infrastructure & Energy, Vehicle Solutions |
|---|---|
| Accuracy | 1/10 DIN, 1/3 DIN, 1/6 DIN, Class A, Class B |
| Approvals | DNV |
| Communication Interface | Analog 4-20mA, HART |
| Electrical connection | cable, Connection head, M12 connector |
| IP Classification | IP54, IP62, IP65, IP67, IP68 |
| Material | AISI 316Ti |
| Measured variable | Temperature |
| Measuring technology | PT100, PT1000, Thermocouple type E, Thermocouple type J, Thermocouple type K, Thermocouple type N, Thermocouple type T |
| Probe length | 300mm, 50mm |
| Process connection | 1'' BSP, 1/2'' BSP, 1/2'' NPT, 1/4'' BSP, 3/4'' BSP, Weld-in |
