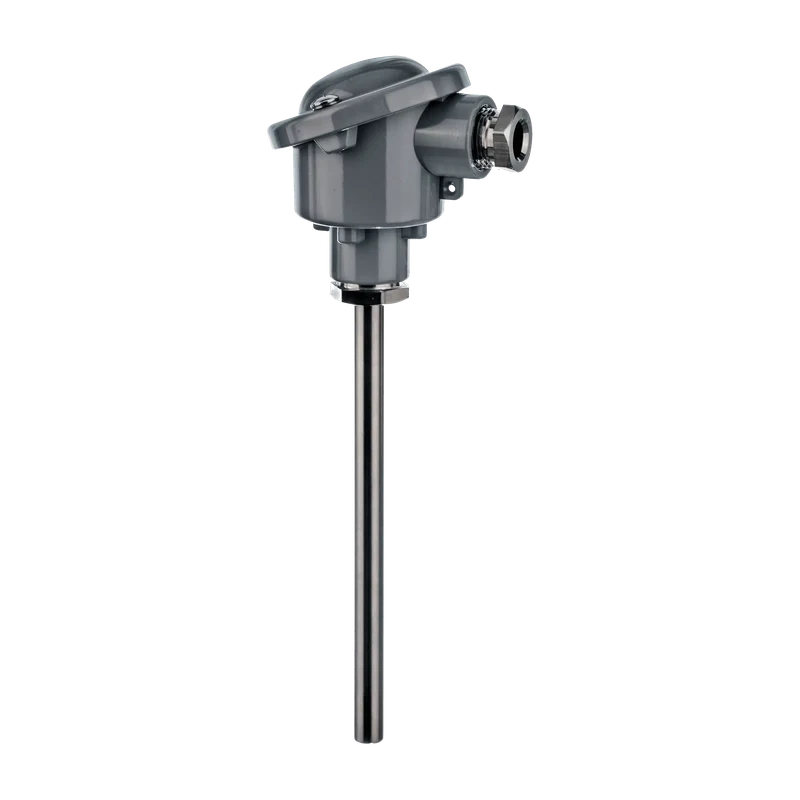

RT-A / TC-A Temperature Sensor with Insert
RT-A / TC-A Temperature Sensor with Insert
Industrial Pt100 or thermocouple temperature sensor with interchangeable insert and adjustable immersion depth for pipes, tanks, boilers and district heating.
RT-A Pt100 to 600 °C, TC-A to 1150 °C
Up to 50 bar and flow velocities of 25 m/s
Insert replaceable without opening the pressure boundary
AISI 316Ti tube Ø8 to Ø15 mm, 50–300 mm
Adjustable 1/4″ or 1/2″ BSP nipple or flange
Aluminium or stainless heads from IP62 to IP68
Optional head transmitter with 4–20 mA or HART
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KPT100 vs thermocouple – how to choose a temperature sensorAdditional information
| Sector | Factory Automation, Infrastructure & Energy |
|---|---|
| Accuracy | 1/10 DIN, 1/3 DIN, 1/6 DIN, Class A, Class B |
| Communication Interface | Analog 4-20mA, HART |
| Electrical connection | cable, Connection head, M12 connector |
| IP Classification | IP62, IP65, IP67, IP68 |
| Material | AISI 316Ti, Aluminium |
| Measured variable | Temperature |
| Measuring technology | PT100, PT1000, Thermocouple type E, Thermocouple type J, Thermocouple type K, Thermocouple type N, Thermocouple type T |
| Probe length | 300mm, 50mm |
| Process connection | 1/2'' BSP, 1/4'' BSP, Adjustable flange |
