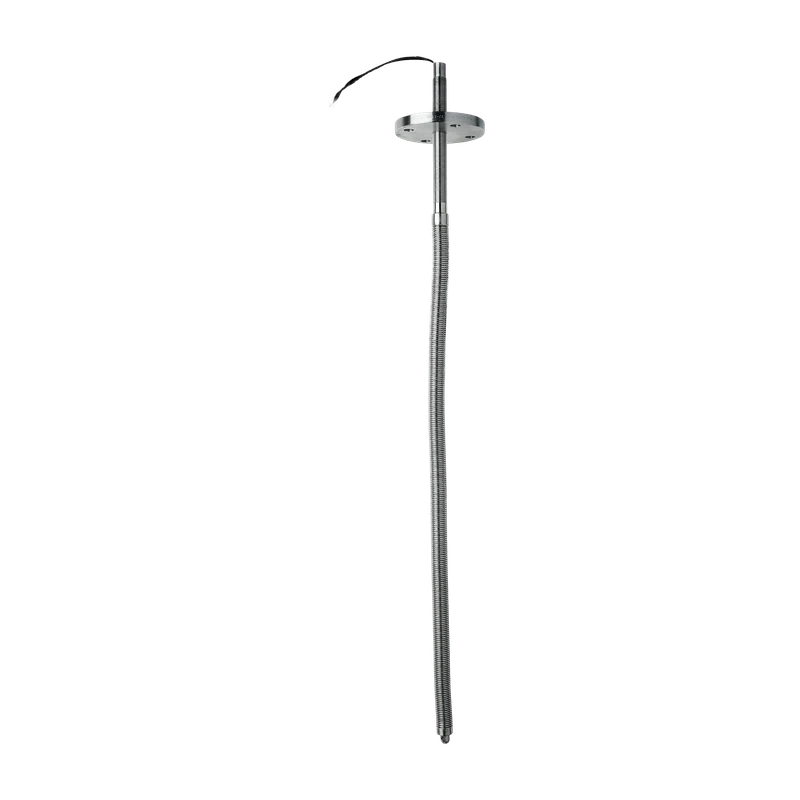

RT-RST-TS Multi-Spot Tank Temperature Sensor
RT-RST-TS Multi-Spot Tank Temperature Sensor
Multi-spot Pt100 temperature sensor with up to 22 elements for thermal profiling of storage tanks holding oil, bitumen, LNG and other bulk media.
Media temperatures −50 to +250 °C
Up to 22 Pt100 or Pt1000 elements, class A/B
Flexible 1 inch AISI 316L tube, 1 to 70 m
Top-mounted with 3/4″ BSP or DN50 PN16 flange
Free leads, stainless connection box or protected cable
Bottom weight and Anaconda protection as accessories
Optional 4–20 mA or HART transmitter
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KPT100 vs thermocouple – how to choose a temperature sensorAdditional information
| Sector | Infrastructure & Energy |
|---|---|
| Accuracy | Class A, Class B |
| Communication Interface | Analog 4-20mA, HART |
| Electrical connection | cable, Free leads |
| Material | AISI 316L |
| Measured variable | Temperature |
| Measuring technology | PT100, PT1000 |
| Media temperature | -50°C ~ 250°C |
| Probe length | 1000mm, 70000mm |
| Process connection | 3/4'' BSP, Flange DN50 |
